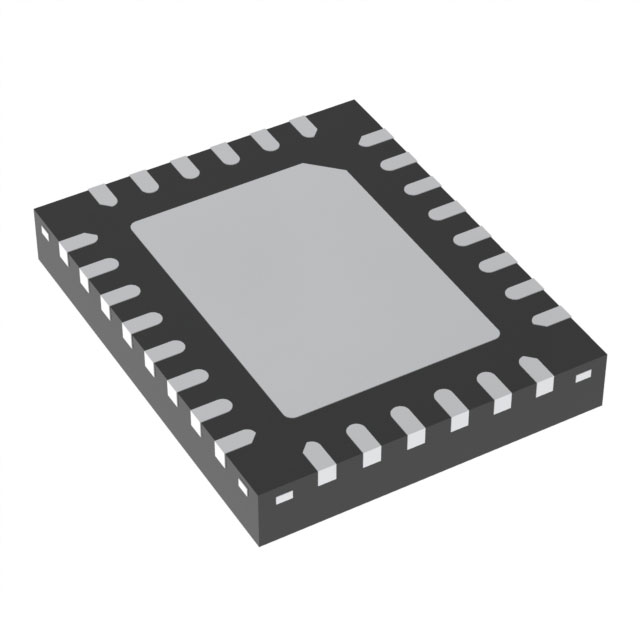

DP83TC813SRHFRQ1
lmages are for reference only.DP83TC813SRHFRQ1
IC TRANSCEIVER FULL 6/6 28VQFN
Datasheet28-VFQFN Exposed Pad
86,507 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6/6 Transceiver Full IEEE 802.3 28-VQFN (5x4)
DP83TC813SRHFRQ1
| Category | Integrated Circuits (ICs) - Interface - Drivers-Receivers-Transceivers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | Not applicable |
| Type | Transceiver |
| Protocol | IEEE 802.3 |
| Number of Drivers/Receivers | 6/6 |
| Duplex | Full |
| Receiver Hysteresis | - |
| Data Rate | 100Mbps |
| Voltage - Supply | 2.97V ~ 3.63V |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 28-VFQFN Exposed Pad |
| Supplier Device Package | 28-VQFN (5x4) |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |

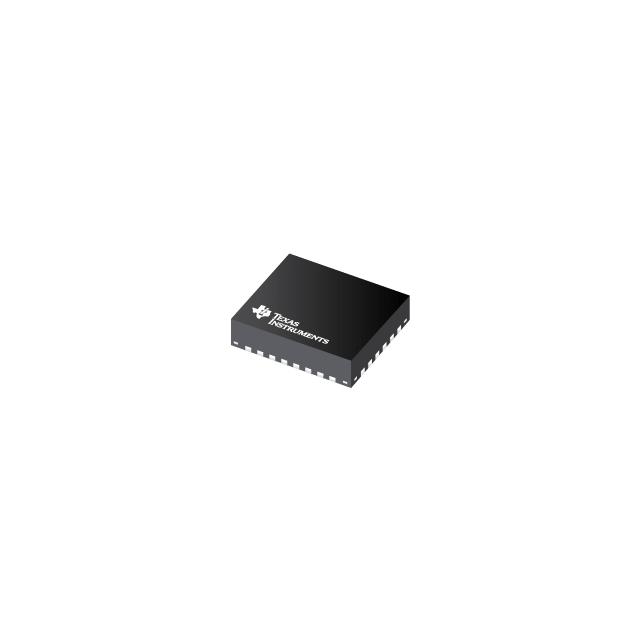

| Part Number | DP83TC813SRHFTQ1 | DP83TC811RWRHARQ1 | DP83TC811RWRHATQ1 | DP83TC811RWRNDRQ1 |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC TRANSCEIVER FULL 6/6 28VQFN | LOW-POWER 100BASE-T1 AUTOMOTIVE | LOW-POWER 100BASE-T1 AUTOMOTIVE | IC TRANSCEIVER 2/2 36VQFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
