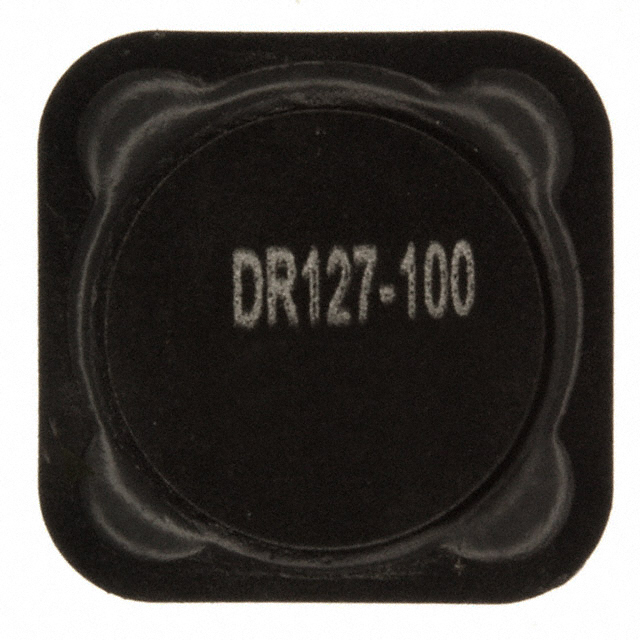

DR127-100-R
lmages are for reference only.DR127-100-R
FIXED IND 10UH 6.04A 17.2MOHM SM
DatasheetNonstandard
23,426 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 µH Shielded Drum Core, Wirewound Inductor 6.04 A 17.2mOhm Nonstandard
DR127-100-R
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Eaton - Electronics Division |
| Series | DR |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 6.04 A |
| Current - Saturation (Isat) | 11.2A |
| Shielding | Shielded |
| DC Resistance (DCR) | 17.2mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

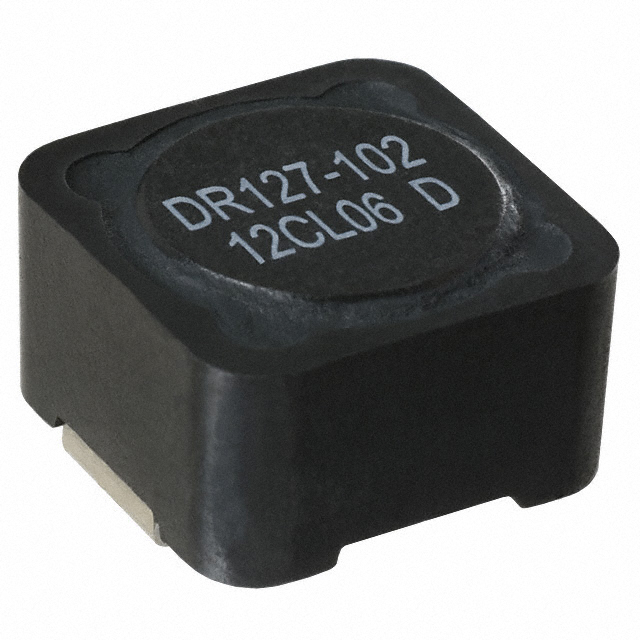

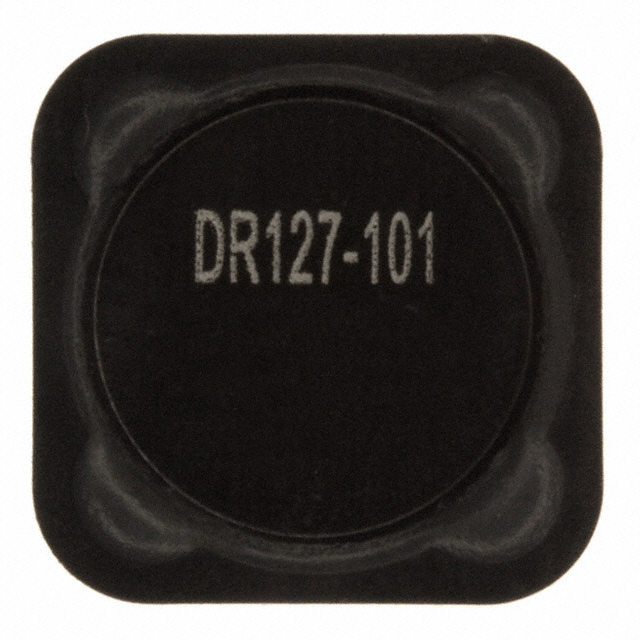

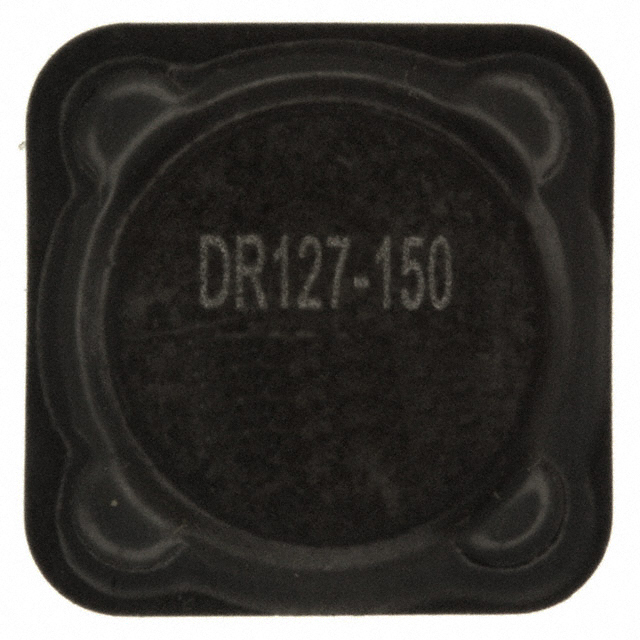

| Part Number | DR127-101-R | DR127-102 | DR127-102-R | DR127-150-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100UH 1.96A 163MOHM SM | FIXED IND 1MH 610MA 1.66 OHM SMD | FIXED IND 1MH 610MA 1.66 OHM SMD | FIXED IND 15UH 5.03A 24.7MOHM SM |
| Series | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
