DRC-1010-472J-UL

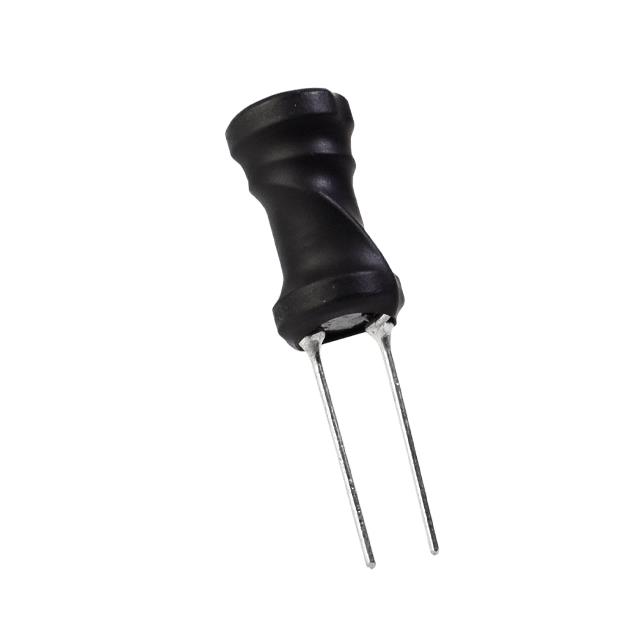

lmages are for reference only.DRC-1010-472J-UL
RADIAL INDUCTOR WITH LEADS, 4700
DatasheetRadial, Vertical Cylinder
67,508 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 mH Unshielded Drum Core, Wirewound Inductor 210 mA 7.6Ohm Max Radial, Vertical Cylinder
DRC-1010-472J-UL
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | DRC-1010 |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 4.7 mH |
| Tolerance | ±5% |
| Current Rating (Amps) | 210 mA |
| Current - Saturation (Isat) | 240mA |
| Shielding | Unshielded |
| DC Resistance (DCR) | 7.6Ohm Max |
| Q @ Freq | 30 @ 252kHz |
| Frequency - Self Resonant | 540kHz |
| Ratings | - |
| Operating Temperature | -20°C ~ 85°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial, Vertical Cylinder |
| Size / Dimension | 0.472" Dia (12.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|
| Part Number | DRC-1010-470K-UL | DRC-1010-100J-UL | DRC-1010-101J-UL | DRC-1010-103J-UL |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RADIAL INDUCTOR WITH LEADS, 47.0 | RADIAL INDUCTOR WITH LEADS, 10.0 | RADIAL INDUCTOR WITH LEADS, 100. | RADIAL INDUCTOR WITH LEADS, 1000 |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Bag | Bag | Bag | Bag |
