DRC-V-220K

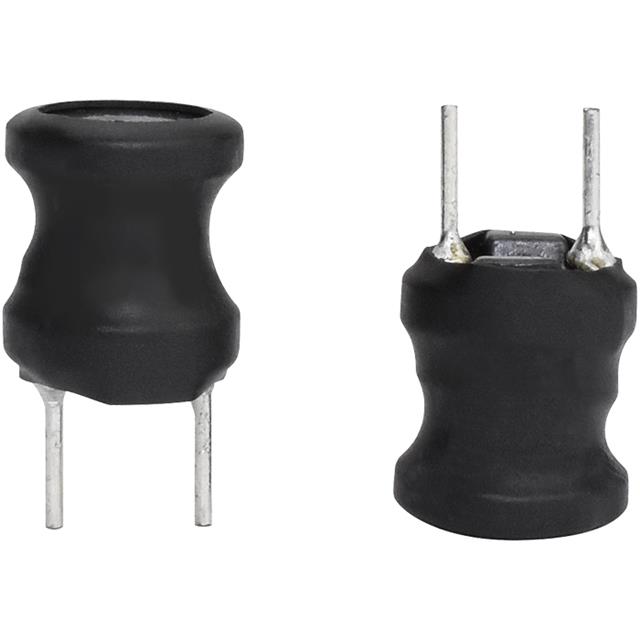

lmages are for reference only.DRC-V-220K
FIXED IND 22UH 2.55A 0.07OHM TH
DatasheetRadial, Vertical Cylinder
50,798 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22 µH Unshielded Drum Core, Wirewound Inductor 2.55 A 70mOhm Max Radial, Vertical Cylinder
DRC-V-220K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Signal Transformer |
| Series | DRC-V |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 2.55 A |
| Current - Saturation (Isat) | 2A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 70mOhm Max |
| Q @ Freq | 40 @ 2.52MHz |
| Frequency - Self Resonant | 9.2MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | Radial |
| Size / Dimension | 0.343" Dia (8.70mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Base Product Number | DRC-V |
| Product Attribute |  |
 |
 |
 |
| Part Number | DRC-V-221K | DRC-V-222K | DRC-V-223K | DRC-V-270K |
| Manufacturer | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 220UH 700MA 0.065OHM | FIXED IND 2.2MH 245MA 6.8OHM TH | FIXED IND 22MH 80MA 56OHM TH | FIXED IND 27UH 2.5A 0.08OHM TH |
| Series | Signal Transformer | Signal Transformer | Signal Transformer | Signal Transformer |
| Packaging | Tray | Tray | Tray | Tray |
