DRQ-12/42-D48PB-C

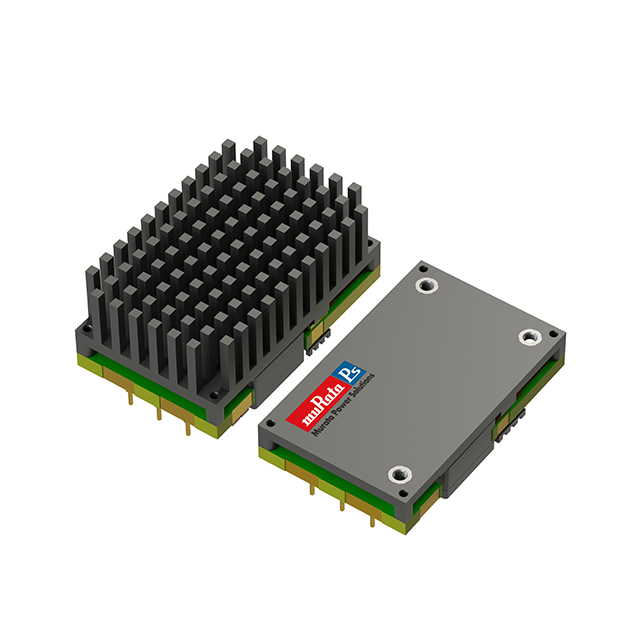

lmages are for reference only.DRQ-12/42-D48PB-C
DC DC CONVERTER 12V 500W
Datasheet5-DIP Module, 1/4 Brick
99,940 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Intermediate Bus Converter DC DC Converter 1 Output 12V 42A 38V - 75V Input
DRQ-12/42-D48PB-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | DRQ-12/42-D48 (500W) |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Intermediate Bus Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 38V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 42A |
| Power (Watts) | 500 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95.5% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module, 1/4 Brick |
| Size / Dimension | 2.30" L x 1.45" W x 1.10" H (58.4mm x 36.8mm x 27.9mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | DRQ-12 |
| Voltage - Isolation | 2.25 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | DRQ-12/42-D48PBA-C | DRQ-12/42-D48PBAL1-C | DRQ-12/42-D48PBAL2-C | DRQ-12/42-D48PBL1-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 12V 500W | DC DC CONVERTER 12V 500W | DC DC CONVERTER 12V 500W | DC DC CONVERTER 12V 500W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tray | Tray | Tray | Tray |
