DRQ-8/100-L48NBS-C

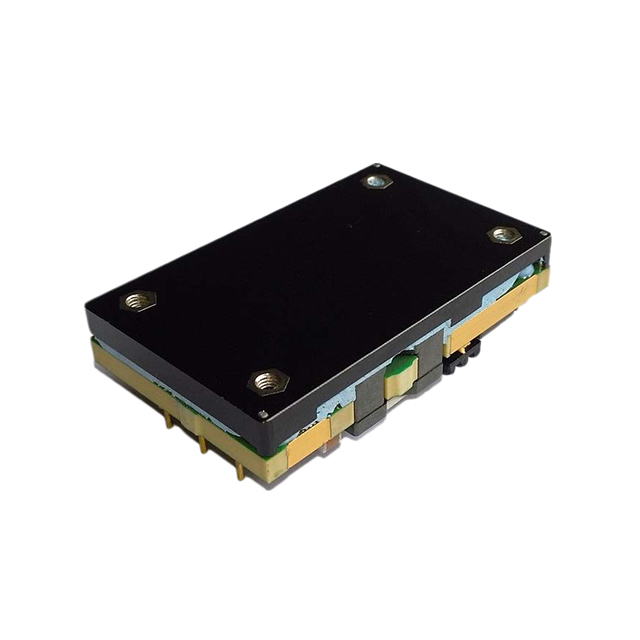

lmages are for reference only.DRQ-8/100-L48NBS-C
DC DC CONVERTER 8V 800W
DatasheetQuarter Brick
28,027 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 8V 100A 36V - 60V Input
DRQ-8/100-L48NBS-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | DRQ-8/100-L48NBxxxx-C (800W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100A |
| Power (Watts) | 800 W |
| Applications | ITE (Commercial) |
| Features | Baseplate, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 95.8% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.30" L x 1.45" W x 0.57" H (58.4mm x 36.8mm x 14.5mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | DRQ-8 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | DRQ-8/100-L48NB-C | DRQ-8/100-L48NBA-C | DRQ-8/100-L48NBAS-C | DRQ-8/100-L48NBZ-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 8V 800W | DC DC CONVERTER 8V 800W | DC DC CONVERTER 8V 800W | DC DC CONVERTER 8V 800W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tray | Tray | Tray | Tray |
