DRQ73-101-R
lmages are for reference only.DRQ73-101-R
INDUCT ARRAY 2 COIL 101.4UH SMD
DatasheetNonstandard
44,933 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Shielded 2 Coil Inductor Array 405.6 µH Inductance - Connected in Series 101.4 µH Inductance - Connected in Parallel 527mOhm DC Resistance (DCR) - Parallel 730 mA Nonstandard
DRQ73-101-R
| Category | Inductors, Coils, Chokes - Arrays-Signal Transformers - |
| Manufacturer | Eaton - Electronics Division |
| Series | DRQ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Number of Coils | 2 |
| Inductance - Connected In Parallel | 101.4 µH |
| Inductance - Connected In Series | 405.6 µH |
| Tolerance | ±20% |
| Current Rating - Parallel | 730 mA |
| Current Rating - Series | 367 mA |
| Current Saturation - Parallel | 790 mA |
| Current Saturation - Series | 390 mA |
| DC Resistance (DCR) - Parallel | 527mOhm |
| DC Resistance (DCR) - Series | 2.11Ohm |
| Shielding | Shielded |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Size / Dimension | 0.299" L x 0.299" W (7.60mm x 7.60mm) |
| Height | 0.140" (3.55mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

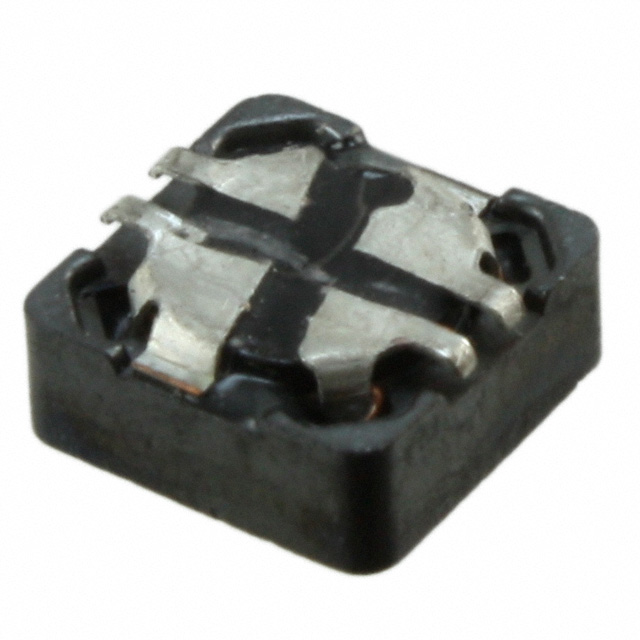

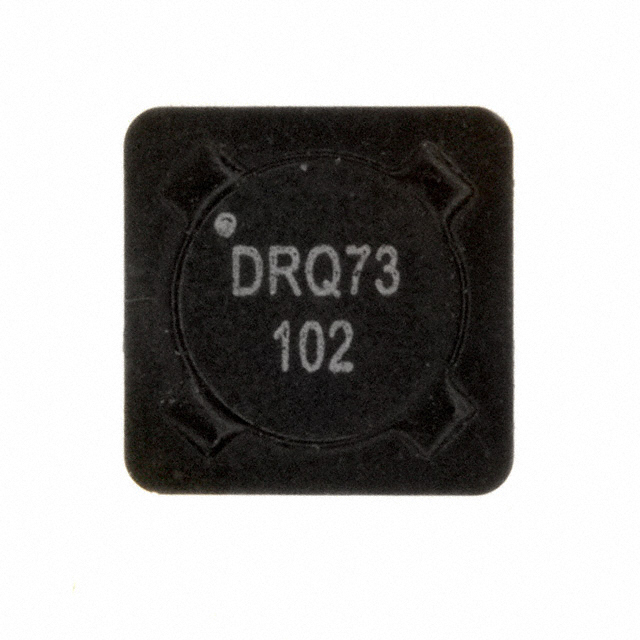

| Part Number | DRQ73-101-R | DRQ73-100-R | DRQ73-100-R | DRQ73-102-R |
| Manufacturer | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | INDUCT ARRAY 2 COIL 101.4UH SMD | INDUCT ARRAY 2 COIL 10.3UH SMD | INDUCT ARRAY 2 COIL 10.3UH SMD | INDUCT ARRAY 2 COIL 995UH SMD |
| Series | DRQ | DRQ | DRQ | DRQ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
