DS15BR401TSQ

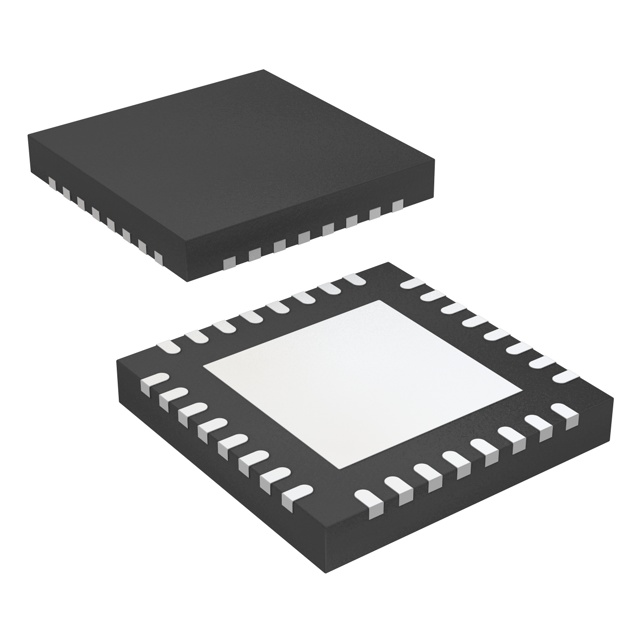

lmages are for reference only.DS15BR401TSQ
LINE TRANSCEIVER, 1 FUNC, 4 DRIV
Datasheet32-WFQFN Exposed Pad
18,024 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buffer, ReDriver 4 Channel 2Gbps 32-WQFN (5x5)
DS15BR401TSQ
| Category | Integrated Circuits (ICs) - Interface - Signal Buffers-Repeaters-Splitters |
| Manufacturer | National Semiconductor |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Buffer, ReDriver |
| Applications | LVDS |
| Input | CML, LVDS, LVPECL |
| Output | LVDS |
| Data Rate (Max) | 2Gbps |
| Number of Channels | 4 |
| Delay Time | 1.0ns |
| Signal Conditioning | Output Pre-Emphasis |
| Voltage - Supply | 3V ~ 3.6V |
| Current - Supply | 175mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-WFQFN Exposed Pad |
| Supplier Device Package | 32-WQFN (5x5) |
| Base Product Number | DS15BR401 |
| Capacitance - Input | 3 pF |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | DS15BR401TSQ | DS15BR401TSQ/NOPB | DS15BR401TSQ/NOPB | DS15BR401TSQX/NOPB |
| Manufacturer | Texas Instruments | National Semiconductor | Texas Instruments | Texas Instruments |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC REDRIVER LVDS 4CH 32WQFN | DS15BR401 4-CHANNEL LVDS BUFFER/ | IC REDRIVER LVDS 4CH 32WQFN | IC REDRIVER LVDS 4CH 32WQFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
