DSA10C150UC-TRL
lmages are for reference only.Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 150 V 5A Surface Mount TO-252-3, DPAK (2 Leads + Tab), SC-63
DSA10C150UC-TRL
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | IXYS |
| Series | DSA10C150UC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Current - Average Rectified (Io) (per Diode) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 860 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 150 V |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252AA |
| Base Product Number | DSA10C150 |
| Reverse Recovery Time (trr) | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

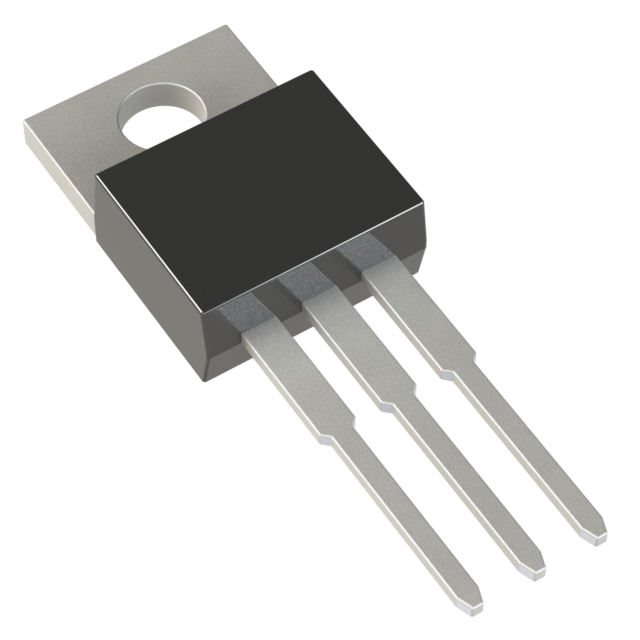

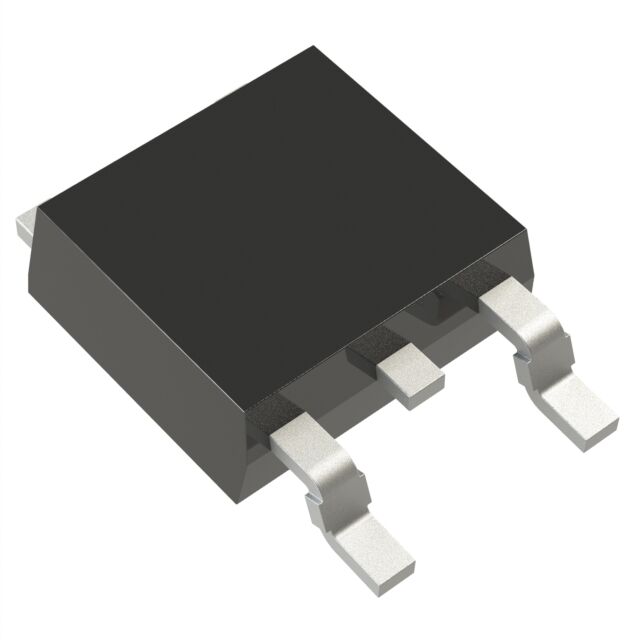

| Part Number | DSA10C150PB | DSA10C150UC-TUB | BAT30CFILM | MA6X12100L |
| Manufacturer | IXYS | IXYS | STMicroelectronics | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE ARR SCHOTT 150V 5A TO2203 | DIODE ARR SCHOTT 150V 5A TO252AA | DIODE ARR SCHOT 30V 300MA SOT233 | DIODE ARRAY GP 80V 100MA MINI6 |
| Series | - | DSA10C150UC | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
