DSC1103CI5-120.0000T

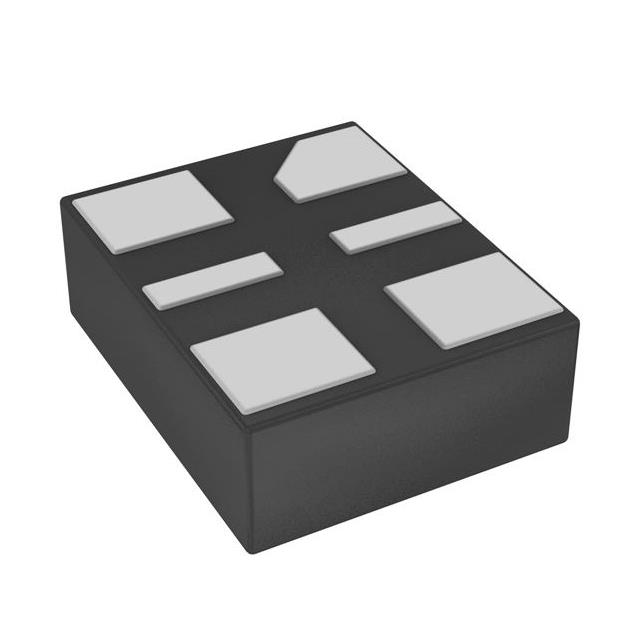

lmages are for reference only.DSC1103CI5-120.0000T
MEMS OSC., LOW JITTER, 120MHZ, L
Datasheet6-VDFN
43,183 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.63V Standby (Power Down) 6-VDFN
DSC1103CI5-120.0000T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Microchip Technology |
| Series | DSC1103 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 120 MHz |
| Function | Standby (Power Down) |
| Output | LVDS |
| Voltage - Supply | 2.25V ~ 3.63V |
| Frequency Stability | ±10ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 32mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
|
| Part Number | DSC1103CI5-120.0000 | DSC1103CI5-012.0000 | DSC1103CI5-012.0000T | DSC1103CI5-016.0000 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC XO 120.0000MHZ LVDS SMD | MEMS OSC XO 12.0000MHZ LVDS SMD | MEMS OSC XO 12.0000MHZ LVDS SMD | MEMS OSC XO 16.0000MHZ LVDS SMD |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Strip | Strip | Strip | Strip |
