DSC1121BI2-010.0000T
lmages are for reference only.DSC1121BI2-010.0000T
MEMS OSC., LOW JITTER, 10MHZ, LV
Datasheet6-VDFN
66,008 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 MHz XO (Standard) CMOS Oscillator 2.25V ~ 3.6V Enable/Disable 6-VDFN
DSC1121BI2-010.0000T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Microchip Technology |
| Series | DSC1121 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 10 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 2.25V ~ 3.6V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 35mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |

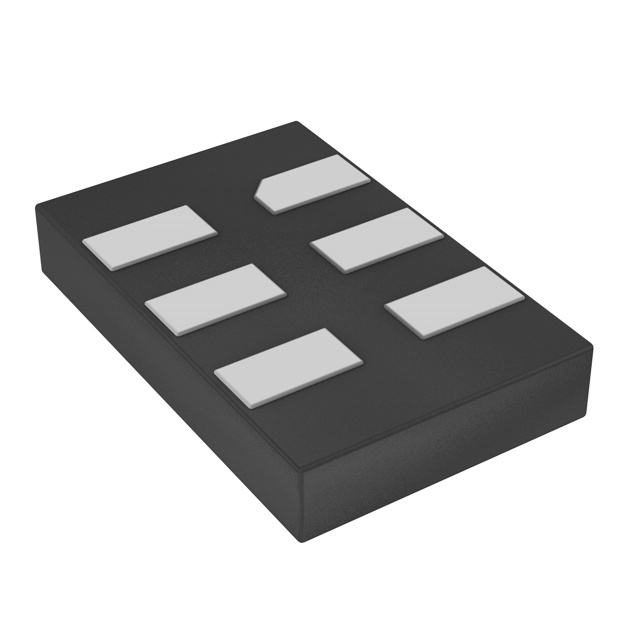

| Part Number | DSC1121BI2-010.0000 | DSC1121BI2-008.0000 | DSC1121BI2-008.0000T | DSC1121BI2-012.0000 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC XO 10.0000MHZ CMOS SMD | MEMS OSC XO 8.0000MHZ CMOS SMD | MEMS OSC LOW POWER LVCMOS 40C-8 | MEMS OSC XO 12.0000MHZ CMOS SMD |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Strip | Strip | Strip | Strip |
