Product CatalogPart Number
DSC1122BI2-075.0000
Manufacturer
Microchip TechnologyDescription
MEMS OSC XO 75.0000MHZ LVPECL
Datasheet
DatasheetPackage
6-VDFN
In Stock
13,427 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DSC1122BI2-075.0000
DSC1122BI2-075.0000

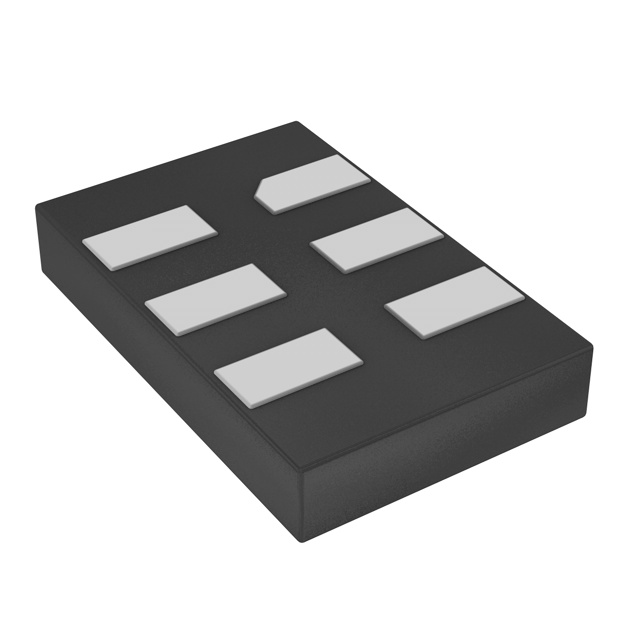

lmages are for reference only.Payment Methods
Delivery Services
75 MHz XO (Standard) LVPECL Oscillator 2.25V ~ 3.63V Enable/Disable 6-VDFN
Quick Inquiry
DSC1122BI2-075.0000
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Microchip Technology |
| Series | DSC1122 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 75 MHz |
| Function | Enable/Disable |
| Output | LVPECL |
| Voltage - Supply | 2.25V ~ 3.63V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 58mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN |
| Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | DSC1122BI2-074.2500 | DSC1122BI2-074.2500T | DSC1122BI2-075.0000T | DSC1122BI1-025.0000 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC XO 74.2500MHZ LVPECL | MEMS OSC XO 74.2500MHZ LVPECL | MEMS OSC XO 75.0000MHZ LVPECL | MEMS OSC XO 25.0000MHZ LVPECL |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Strip | Strip | Strip | Strip |
