DSC1123AI1-156.2500T

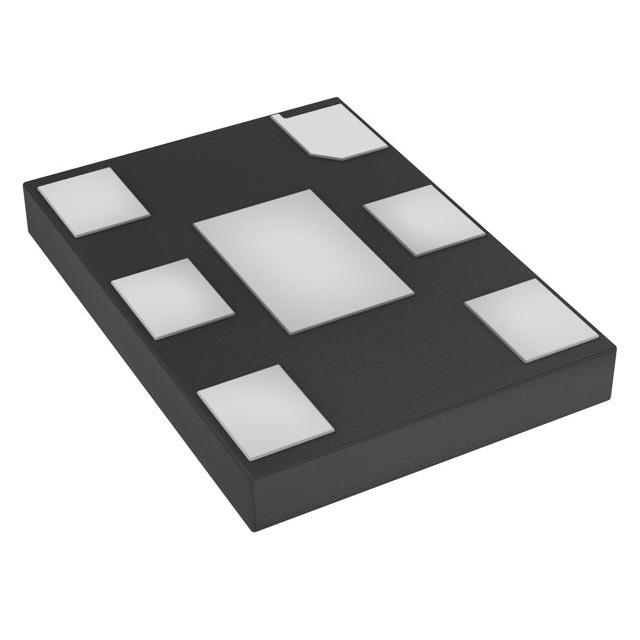

lmages are for reference only.DSC1123AI1-156.2500T
MEMS OSC XO 156.2500MHZ LVDS SMD
Datasheet6-SMD, No Lead Exposed Pad
44,639 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
156.25 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.63V Enable/Disable 6-SMD, No Lead Exposed Pad
DSC1123AI1-156.2500T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Dallas Semiconductor |
| Series | DSC1123 |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 156.25 MHz |
| Function | Enable/Disable |
| Output | LVDS |
| Voltage - Supply | 2.25V ~ 3.63V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 32mA |
| Ratings | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead Exposed Pad |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
|
| Part Number | DSC1123AI1-156.2500 | DSC1123AI1-156.2500T | DSC1123AI1-075.0000 | DSC1123AI1-075.0000T |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC XO 156.2500MHZ LVDS SMD | MEMS OSC XO 156.2500MHZ LVDS SMD | MEMS OSC XO 75.0000MHZ LVDS SMD | MEMS OSC XO 75.0000MHZ LVDS SMD |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Strip | Strip | Strip | Strip |
