Product CatalogPart Number
DSC1202NE3-75M00000
Manufacturer
Microchip TechnologyDescription
MEMS OSC XO 75.0000MHZ LVPECL
Datasheet
DatasheetPackage
6-VDFN
In Stock
29,774 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DSC1202NE3-75M00000
DSC1202NE3-75M00000
lmages are for reference only.Payment Methods
Delivery Services
75 MHz XO (Standard) LVPECL Oscillator 2.25V ~ 3.63V Standby (Power Down) 6-VDFN
Quick Inquiry
DSC1202NE3-75M00000
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Microchip Technology |
| Series | DSC12X2 |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 75 MHz |
| Function | Standby (Power Down) |
| Output | LVPECL |
| Voltage - Supply | 2.25V ~ 3.63V |
| Frequency Stability | ±20ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 50mA (Typ) |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

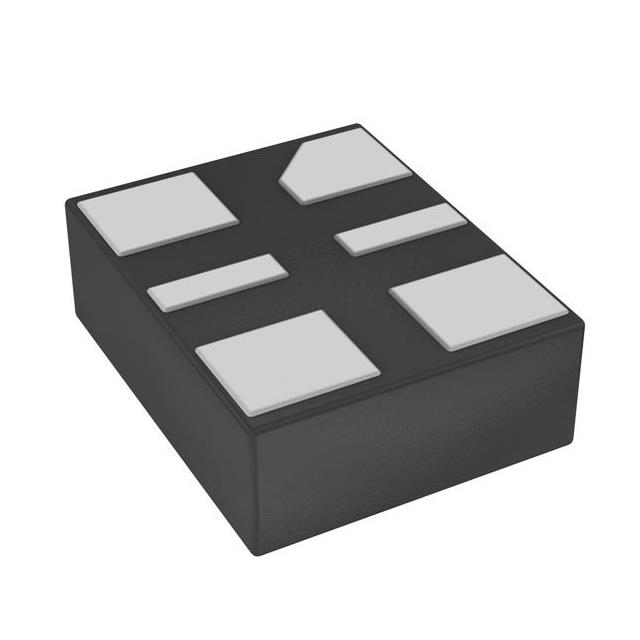

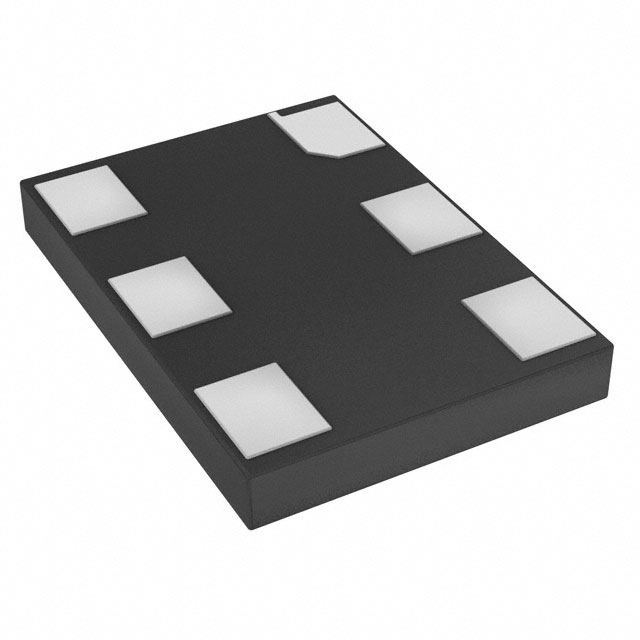

| Part Number | DSC1202NE3-75M00000T | DSC1202NE1-46M87500 | DSC1202NE1-46M87500T | DSC1202NE1-52M50000 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC 75MHZ LVPECL SMD | MEMS OSC XO 46.8750MHZ LVPECL | MEMS OSC, LOW JITTER, 46.875MHZ, | MEMS OSC XO 52.5000MHZ LVPECL |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Strip | Strip | Strip | Strip |
Customers Also Interested in
Recommended Products
DSC1201BA3-10M00000
Microchip Technology
DSC1201BA3-10M00000T
Microchip Technology
DSC1201BA3-40M00000
Microchip Technology
DSC1201BA3-40M00000T
Microchip Technology

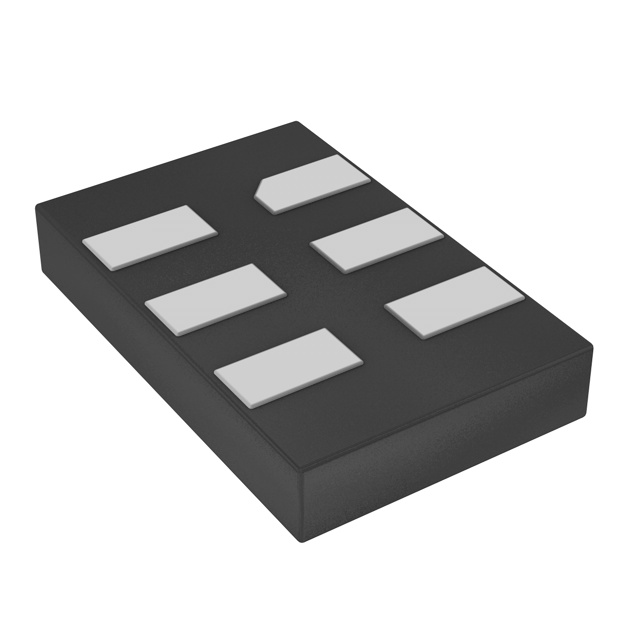

DSC1201BA3-48M00000
