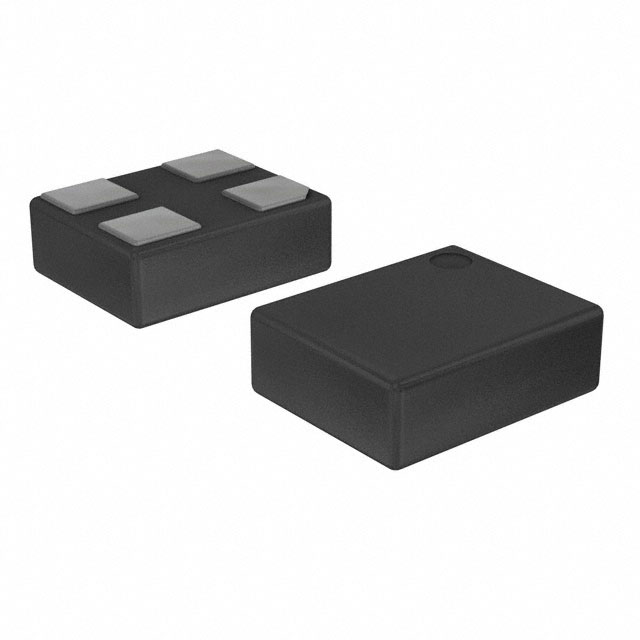

DSC1522JL2A-50M00000T
lmages are for reference only.DSC1522JL2A-50M00000T
MEMS OSC, LOW JITTER, 50MHZ, 2.5
Datasheet4-VLGA
49,937 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
50 MHz XO (Standard) LVCMOS Oscillator 2.25V ~ 3.63V Enable/Disable 4-VLGA
DSC1522JL2A-50M00000T
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Microchip Technology |
| Series | DSC152X |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 50 MHz |
| Function | Enable/Disable |
| Output | LVCMOS |
| Voltage - Supply | 2.25V ~ 3.63V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 105°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 7.5mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-VLGA |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | DSC1522JL2A-50M00000 | DSC1522JL2A-24M00000 | DSC1522JL2A-24M00000T | DSC1522JL2A-25M00000 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSC XO 50.0000MHZ LVCMOS | MEMS OSC XO 24.0000MHZ LVCMOS | MEMS OSC, LOW JITTER, 24MHZ, 2.5 | MEMS OSC XO 25.0000MHZ LVCMOS |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Strip | Strip | Strip | Strip |
