DSC6001ME2B-009.0000
lmages are for reference only.DSC6001ME2B-009.0000
MEMS OSC XO 9.0000MHZ CMOS SMD
Datasheet4-VFLGA
71,807 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9 MHz XO (Standard) CMOS Oscillator 1.71V ~ 3.63V Enable/Disable 4-VFLGA
DSC6001ME2B-009.0000
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | Microchip Technology |
| Series | DSC60XXB |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | MEMS |
| Type | XO (Standard) |
| Frequency | 9 MHz |
| Function | Enable/Disable |
| Output | CMOS |
| Voltage - Supply | 1.71V ~ 3.63V |
| Frequency Stability | ±25ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -20°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 1.3mA (Typ) |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-VFLGA |
| Size / Dimension | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |

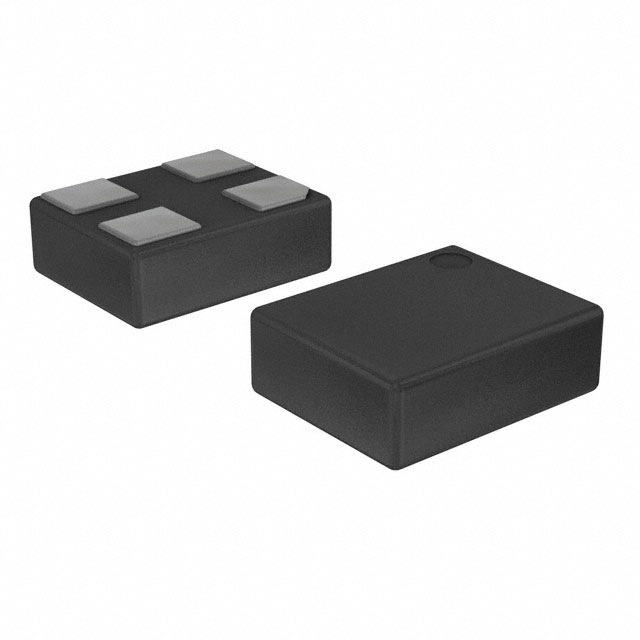

| Part Number | DSC6001ME2B-009.0000T | DSC6001ME2A-012.0000 | DSC6001ME2A-012.0000T | DSC6001ME2A-024.0000 |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MEMS OSCILLATOR, ULTRA LOW POWER | MEMS OSC XO 12.0000MHZ CMOS SMD | MEMS OSC XO 12.0000MHZ CMOS SMD | MEMS OSC XO 24.0000MHZ CMOS SMD |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Strip | Bag | Tape & Reel (TR) | Bag |
