Product CatalogPart Number
DSEP60-03A
Manufacturer
IXYSDescription
DIODE GEN PURP 300V 60A TO247
Datasheet
DatasheetPackage
TO-247-2
In Stock
64,499 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DSEP60-03A
DSEP60-03A
lmages are for reference only.Payment Methods
Delivery Services
Diode 300 V 60A Through Hole TO-247
Quick Inquiry
DSEP60-03A
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | IXYS |
| Series | HiPerFRED™ |
| Packaging | Tube |
| RoHS Status | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Current - Average Rectified (Io) | 60A |
| Voltage - Forward (Vf) (Max) @ If | 1.71 V @ 60 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 30 ns |
| Current - Reverse Leakage @ Vr | 650 µA @ 300 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-2 |
| Supplier Device Package | TO-247 |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | DSEP60 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | DSEP60-025A | DSEP60-04A | DSEP60-06A | DSEP60-06AT-TUB |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||

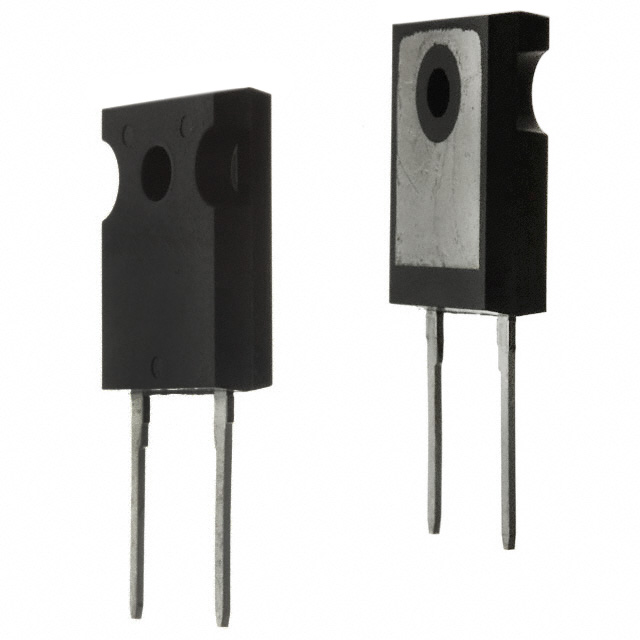

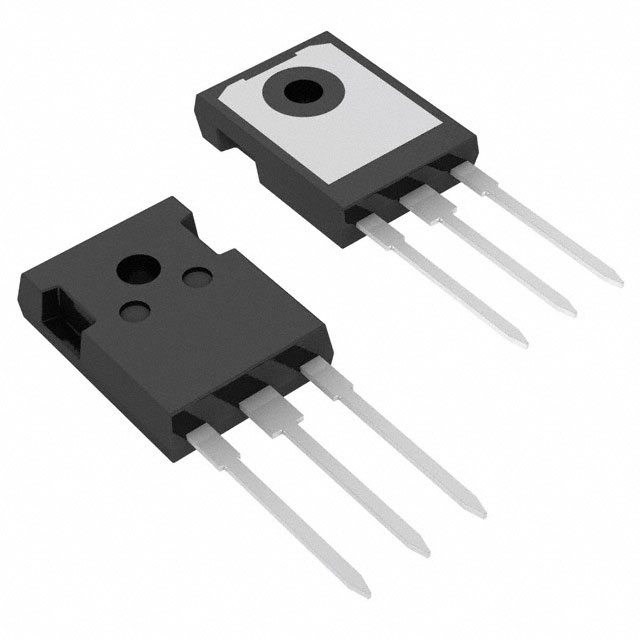

| Description | DIODE GEN PURP 250V 60A TO247AD | DIODE GEN PURP 400V 60A TO247 | DIODE GEN PURP 600V 60A TO247AD | DIODE GEN PURP 600V 60A TO268AA |
| Series | HiPerFRED™ | HiPerFRED™ | HiPerFRED™ | HiPerFRED™ |
| Packaging | Box | Tube | Tube | Tube |
