Product CatalogPart Number

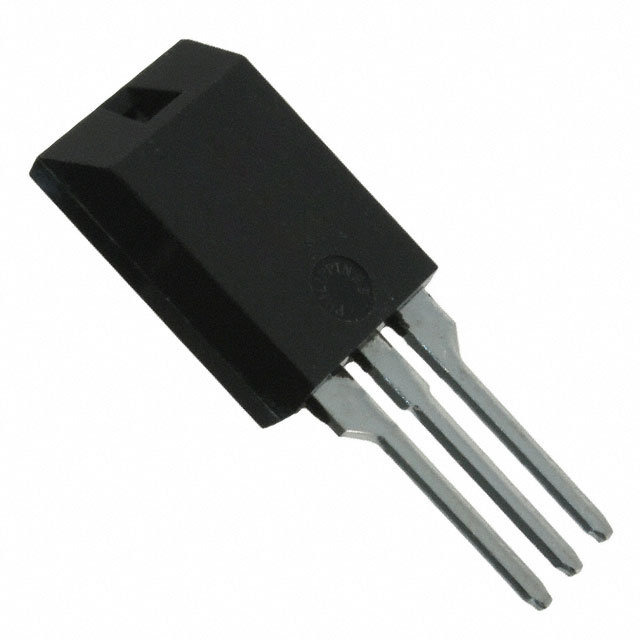

DSI30-12AC
Manufacturer
IXYSDescription
DIODE GP 1.2KV 30A ISOPLUS220
Datasheet
DatasheetPackage
ISOPLUS220™
In Stock
22,047 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DSI30-12AC
DSI30-12AC
lmages are for reference only.Payment Methods
Delivery Services
Diode 1200 V 30A Through Hole ISOPLUS220™
Quick Inquiry
DSI30-12AC
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.45 V @ 45 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 1200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | ISOPLUS220™ |
| Supplier Device Package | ISOPLUS220™ |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | DSI30 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

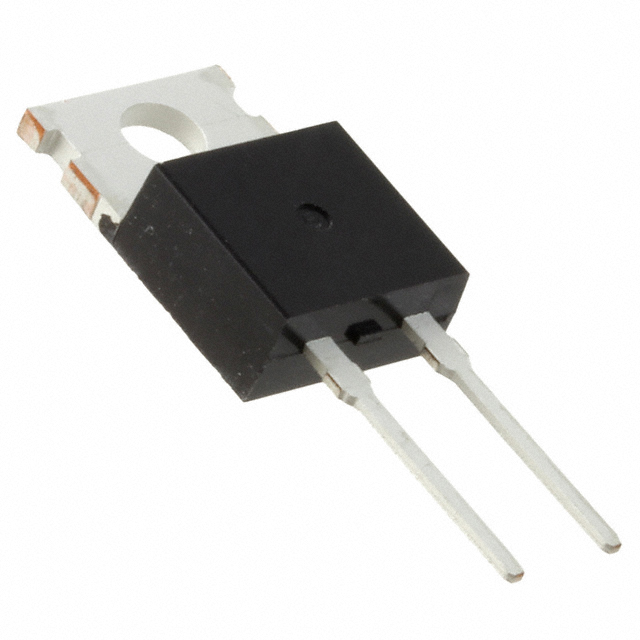

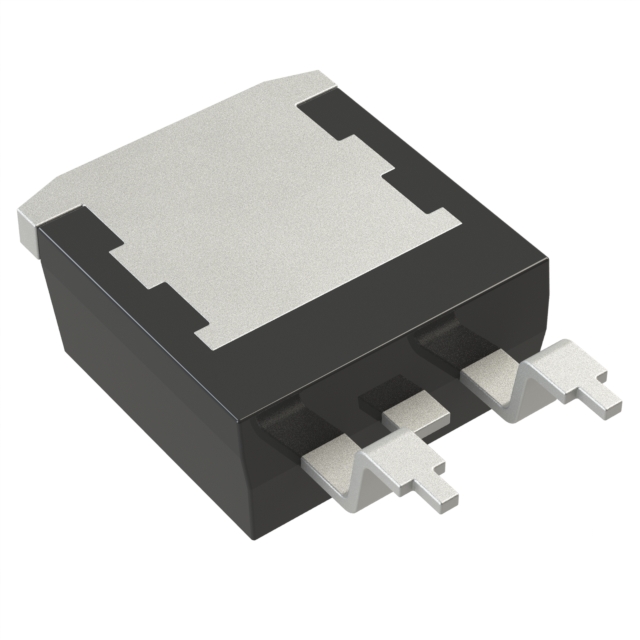

| Part Number | DSI30-12A | DSI30-12AS-TRL | DSI30-12AS-TUB | DSI30-16A |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE GEN PURP 1.2KV 30A TO220AC | DIODE GEN PURP 1.2KV 30A TO263AA | DIODE GEN PURP 1.2KV 30A TO263AA | DIODE GEN PURP 1.6KV 30A TO220AC |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube |
