DSP1-DC24V-R-F
Manufacturer
Panasonic Electric WorksDescription
RELAY GEN PURPOSE DPST 5A 24V
Datasheet
DatasheetPackage
-
In Stock
61,859 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DSP1-DC24V-R-F
DSP1-DC24V-R-F
lmages are for reference only.Payment Methods
Delivery Services

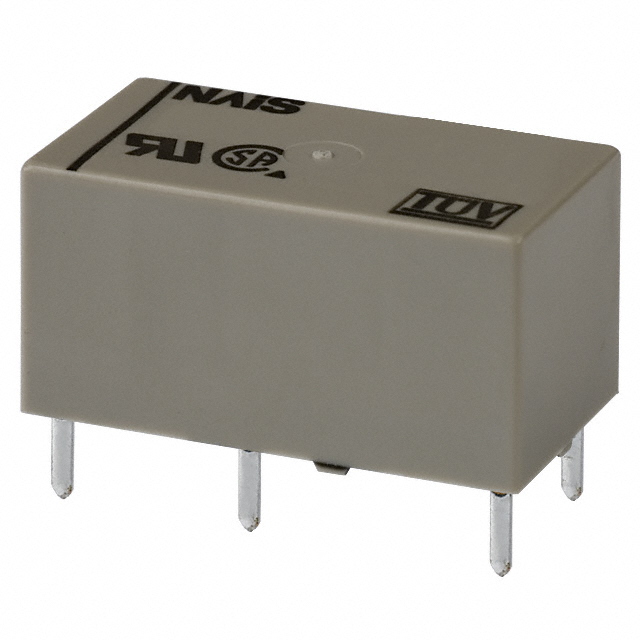

General Purpose Relay DPST-NO/NC (1 Form A, 1 Form B) 24VDC Coil Through Hole
Quick Inquiry
DSP1-DC24V-R-F
Specifications
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | Panasonic Electric Works |
| Series | DSP |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 24VDC |
| Contact Form | DPST-NO/NC (1 Form A, 1 Form B) |
| Contact Rating (Current) | 5 A |
| Switching Voltage | 250VAC, 125VDC - Max |
| Load - Max Switching | 1500VA, 625W |
| Coil Current | 12.5 mA |
| Coil Type | Non Latching |
| Features | Reverse Coil Polarity |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Release Time | 5 ms |
| Operating Temperature | -40°C ~ 65°C |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 1.92 kOhms |
| Base Product Number | DSP1-D |
