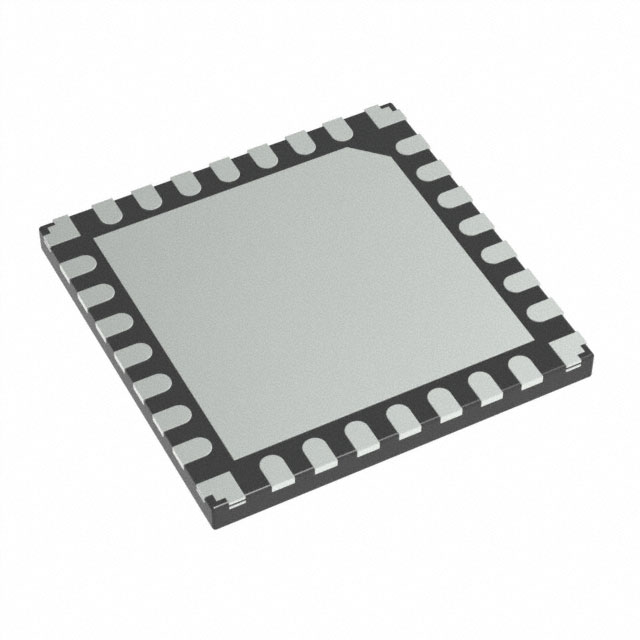

DSPIC33CH64MP502-E/2N
lmages are for reference only.DSPIC33CH64MP502-E/2N
IC MCU 16BIT 88KB FLASH 28UQFN
Datasheet28-UQFN Exposed Pad
30,705 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
dsPIC dsPIC™ 33CH, Functional Safety (FuSa) Microcontroller IC 16-Bit Dual-Core 180MHz, 200MHz 88KB (88K x 8) FLASH, PRAM 28-UQFN (6x6)
DSPIC33CH64MP502-E/2N
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Microchip Technology |
| Series | dsPIC™ 33CH, Functional Safety (FuSa) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Core Processor | dsPIC |
| Core Size | 16-Bit Dual-Core |
| Speed | 180MHz, 200MHz |
| Connectivity | CANbus, I2C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, WDT |
| Number of I/O | 21 |
| Program Memory Size | 88KB (88K x 8) |
| Program Memory Type | FLASH, PRAM |
| EEPROM Size | - |
| RAM Size | 20K x 8 |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 3.6V |
| Data Converters | A/D 23x12b; D/A 4x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 28-UQFN (6x6) |
| Package / Case | 28-UQFN Exposed Pad |
| Base Product Number | DSPIC33CH64MP502 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |

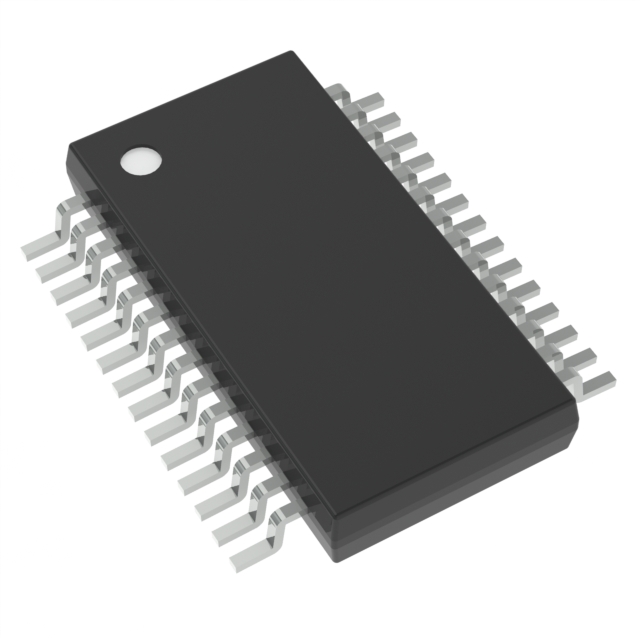

| Part Number | DSPIC33CH64MP502-E/SS | DSPIC33CH64MP502-I/2N | DSPIC33CH64MP502-I/SS | DSPIC33CH64MP502T-I/2N |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 16BIT 88KB FLASH 28SSOP | IC MCU 16BIT 88KB FLASH 28UQFN | IC MCU 16BIT 88KB FLASH 28SSOP | IC MCU 16BIT 88KB FLASH 28UQFN |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR)-->Cut Tape (CT) |
