Product CatalogPart Number
DSS10-0045B
Manufacturer
IXYSDescription
DIODE SCHOTTKY 45V 10A TO220AC
Datasheet
DatasheetPackage
TO-220-2
In Stock
84,341 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
DSS10-0045B
DSS10-0045B
lmages are for reference only.Payment Methods
Delivery Services
Diode 45 V 10A Through Hole TO-220AC
Quick Inquiry
DSS10-0045B
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | IXYS |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Current - Average Rectified (Io) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 510 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 5 mA @ 45 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | DSS10 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | DSS10-0045A | DSS10-006A | DSS10-01A | DSS10-01AS-TRL |
| Manufacturer | IXYS | IXYS | IXYS | IXYS |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

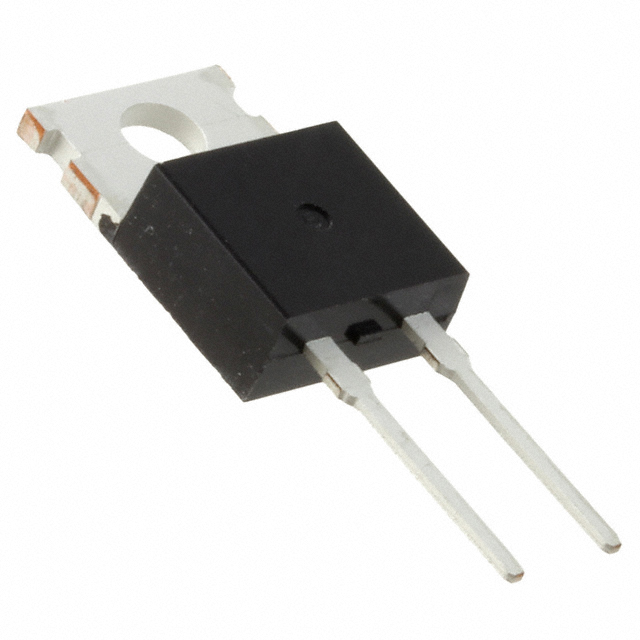

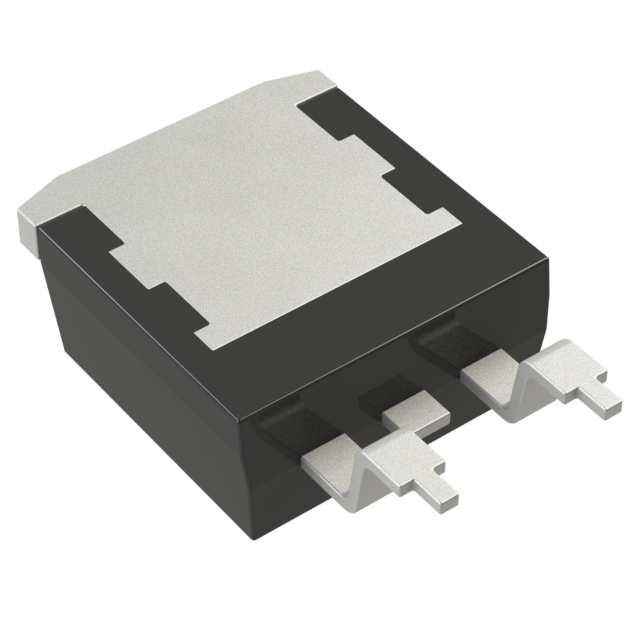

| Description | DIODE SCHOTTKY 45V 10A TO220AC | DIODE SCHOTTKY 60V 10A TO220AC | DIODE SCHOTTKY 100V 10A TO220AC | DIODE SCHOTTKY 100V 10A TO263AA |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
