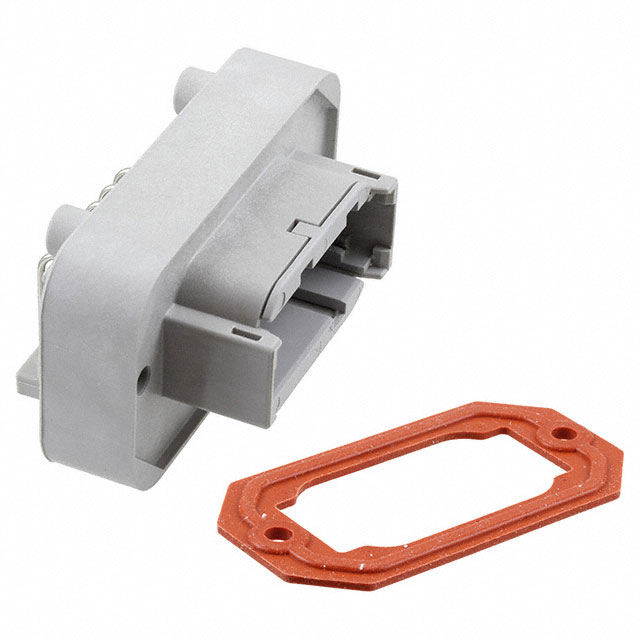

Connector Header Panel Mount, Through Hole, Right Angle 12 position 0.165" (4.20mm)
DTM13-12PA-R020
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | TE Connectivity Deutsch Connectors |
| Series | DTM |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.165" (4.20mm) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Length - Mating | - |
| Contact Length - Post | 0.112" (2.85mm) |
| Overall Contact Length | - |
| Insulation Height | 1.378" (35.00mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Nickel |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyamide (PA46), Nylon 4/6, Glass Filled |
| Features | Mounting Flange |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | - |
| Insulation Color | Black |
| Current Rating (Amps) | 7.5A |
| Voltage Rating | 250VAC/DC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | - |
| Applications | - |
| Base Product Number | DTM13 |
| Product Attribute |  |
 |
 |
 |
| Part Number | DTM13-12PA-R008 | DTM13-12PA-R019 | DTM13-12PA | DTM13-12PA-12PB-R008 |
| Manufacturer | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors | TE Connectivity Deutsch Connectors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

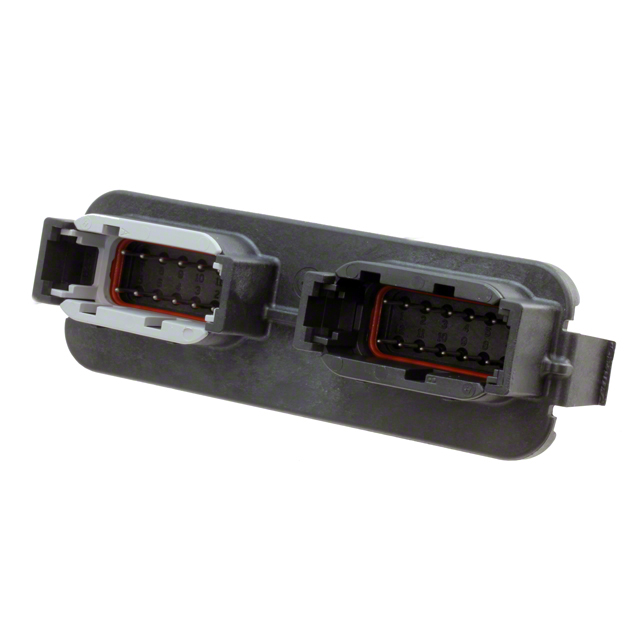

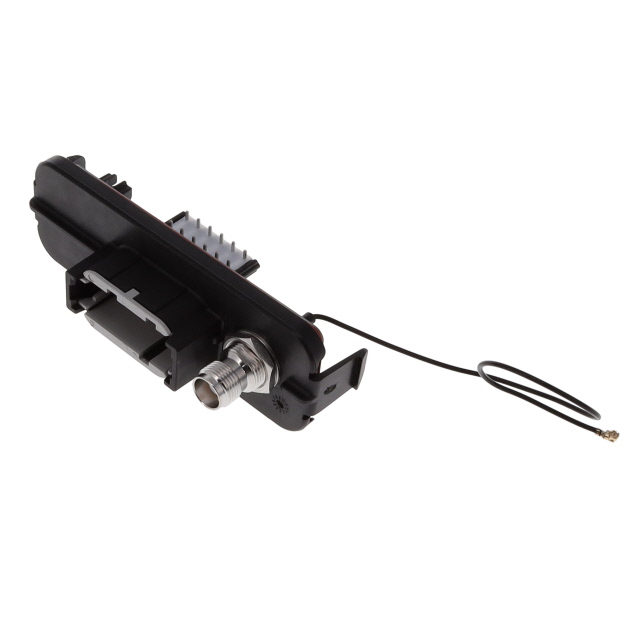

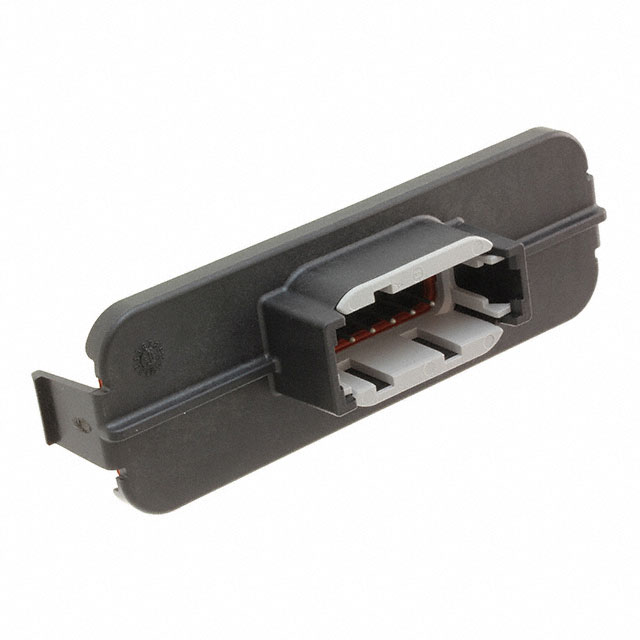

| Description | CONN HEADER R/A 12POS | DTM13-12PA-R019, HDR,12P, BLK,RA | CONN HEADER R/A 12POS | CONN HEADER R/A 24POS |
| Series | DTM | DTM | DTM | DTM |
| Packaging | Bulk | Tray | Bulk | Bulk |
