E0309XT-1WR3-TR
lmages are for reference only.E0309XT-1WR3-TR
DC DC CONVERTER +/-9V 1W
Datasheet10-SMD Module, 6 Leads
60,776 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 2.97V - 3.63V Input

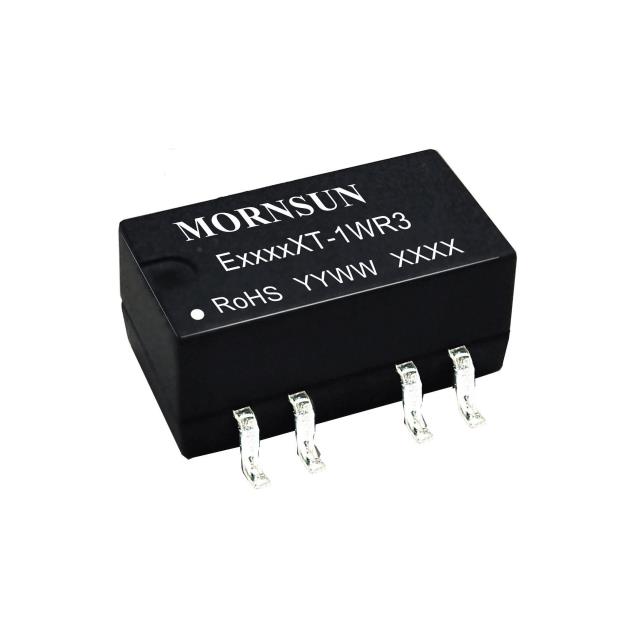

E0309XT-1WR3-TR
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 2.97V |
| Voltage - Input (Max) | 3.63V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 56mA, 56mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD Module, 6 Leads |
| Size / Dimension | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
|
|

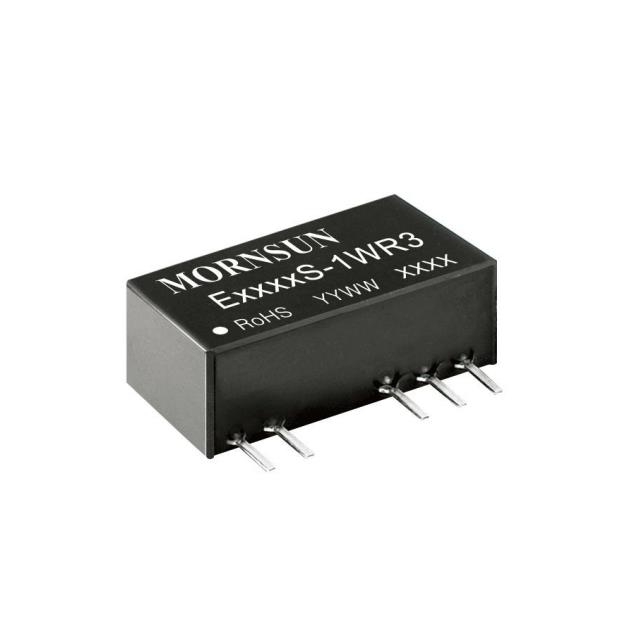

| Part Number | E0309S-1WR3 | E0309XT-1WR3 | E0309XT-1WR3-TR | 4AA12-P4-25PPM-M-E |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | ULTRAVOLT / Advanced Energy |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DC DC CONVERTER +/-9V 1W | DC DC CONVERTER +/-9V 1W | DC DC CONVERTER +/-9V 1W | DC/DC CONVERTER |
| Series | ULTRAVOLT / Advanced Energy | |||
| Packaging | E0309S-1WR3 (1W) | E0309XT-1WR3 (1W) | E0309XT-1WR3 (1W) | Bulk |
