E0512LT-1WR3
lmages are for reference only.E0512LT-1WR3
ISOLATED MODULE DC DC CONVERTER
Datasheet12-SMD Module, 10 Leads
18,308 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 5.5V Input
E0512LT-1WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | -12V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 42mA, 42mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 83% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-SMD Module, 10 Leads |
| Size / Dimension | 0.60" L x 0.33" W x 0.29" H (15.2mm x 8.5mm x 7.3mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus, EN, IEC, UL |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |

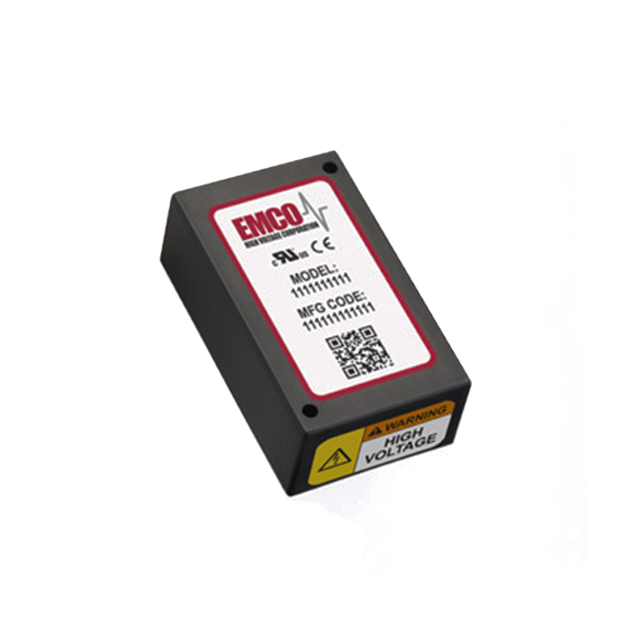

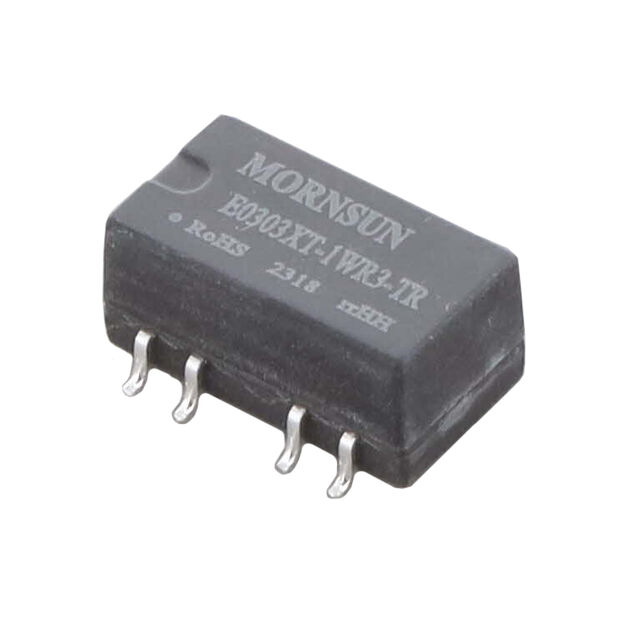

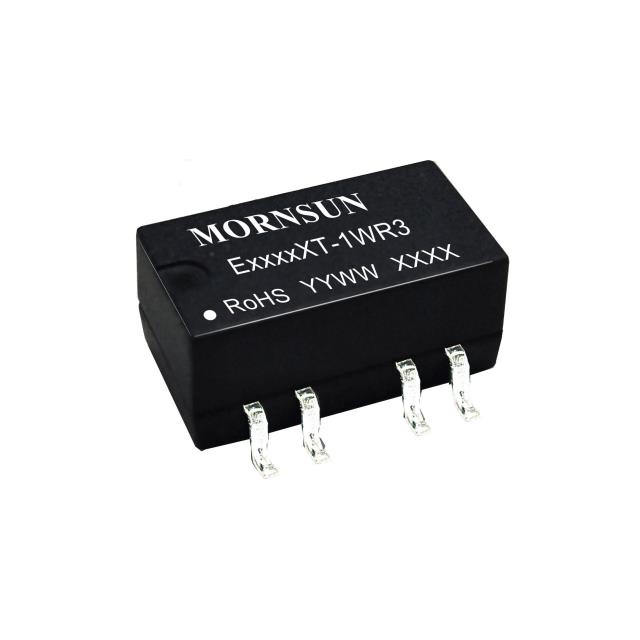

| Part Number | E02 | E0303S-1WR3 | E0303XT-1WR3 | E0303XT-1WR3-TR |
| Manufacturer | XP Power | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 200V 3W | DC DC CONVERTER +/-3.3V 1W | DC DC CONVERTER +/-3.3V 1W | DC DC CONVERTER +/-3.3V 1W |
| Series | XP Power | |||
| Packaging | Bulk | E0303S-1WR3 (1W) | E0303XT-1WR3 (1W) | E0303XT-1WR3 (1W) |
