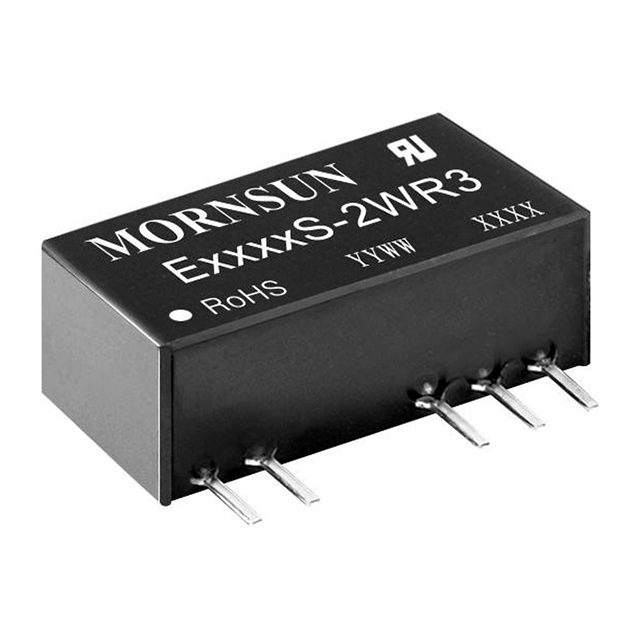

E1203D-2WR3
lmages are for reference only.E1203D-2WR3
DC DC CONVERTER +/-3V 2W
Datasheet14-DIP Module, 6 Leads
59,442 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 3.3V -3.3V 303mA, 303mA 10.8V - 13.2V Input
E1203D-2WR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | -3.3V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 303mA, 303mA |
| Power (Watts) | 1.99 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 75% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP Module, 6 Leads |
| Size / Dimension | 0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | E1203S-1WR3 | E1203S-2WR3 | ERM10A110 | EC3SB-12S33 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | ARTESYN / Advanced Energy | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-3.3V 1W | DC DC CONVERTER +/-3.3V 1W | DC DC CONVERTER 5V 50W | DC DC CONVERTER 3.3V 13W |
| Series | ARTESYN / Advanced Energy | Cincon Electronics Co. LTD | ||
| Packaging | E_S-1WR3 (1W) | E_S-2WR3 (2W) | Bulk | Tube |
