E1WCDA12-32.768K
lmages are for reference only.Payment Methods
Delivery Services
32.768 kHz ±20ppm Crystal 12.5pF 35 kOhms Cylindrical Can, Radial
E1WCDA12-32.768K
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Ecliptek |
| Series | E1WC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | kHz Crystal (Tuning Fork) |
| Frequency | 32.768 kHz |
| Frequency Stability | - |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 12.5pF |
| ESR (Equivalent Series Resistance) | 35 kOhms |
| Operating Mode | Fundamental |
| Operating Temperature | -10°C ~ 60°C |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Cylindrical Can, Radial |
| Size / Dimension | - |
| Height - Seated (Max) | 0.244" (6.20mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |

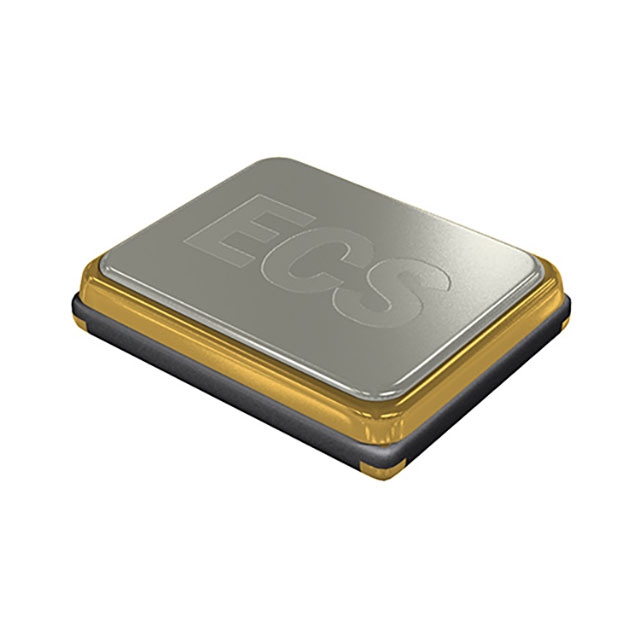

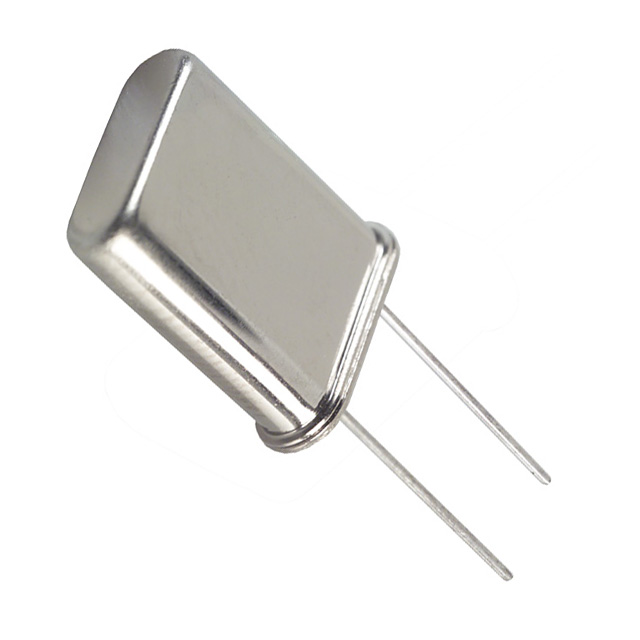

| Part Number | E1WCDA12-32.768K | ECS-060-18-20BM-JEM-TR | ECS-160-8-36Q-AES-TR | ECS-40.3-20-1 |
| Manufacturer | Ecliptek | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | CRYSTAL 32.7680KHZ 12.5PF TH | CRYSTAL 6.000 MHZ 18 PF SMD | CRYSTAL 16.0000MHZ 8PF SMD | CRYSTAL 4.0320MHZ 20PF TH |
| Series | Ecliptek | ECS Inc. | ECS Inc. | ECS Inc. |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
