E32D161HPN223MEB7M
lmages are for reference only.Payment Methods
Delivery Services

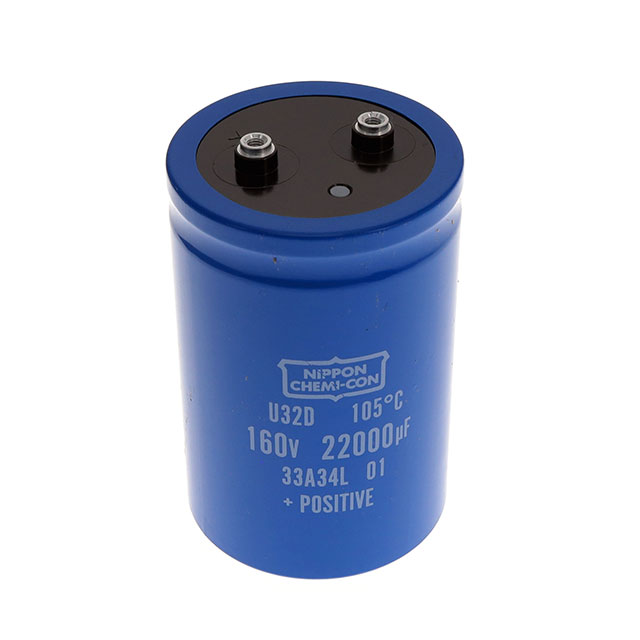

22000 µF 160 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 11.3mOhm @ 120Hz 2000 Hrs @ 105°C
E32D161HPN223MEB7M
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | U32D |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 11.3mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 24.09 A @ 120 Hz |
| Ripple Current @ High Frequency | 32.0397 A @ 50 kHz |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.625" (117.48mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
|
|
| Part Number | E32D161HPN223MEB7U | E32D161HLN223MEB7Q | E32D161HPN123MDA5M | E32D161HPN182MA67M |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | CAP ALUM 22000UF 20% 160V SCREW | CAP ALUM 22000UF 20% 160V SCREW | CAP ALUM 12000UF 20% 160V SCREW | CAP ALUM 1800UF 20% 160V SCREW |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
