E32D800HPS683MED0M
lmages are for reference only.Payment Methods
Delivery Services
68000 µF 80 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 6.4mOhm @ 120Hz 2000 Hrs @ 105°C
E32D800HPS683MED0M
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chemi-Con |
| Series | U32D |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 6.4mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 33.51 A @ 120 Hz |
| Ripple Current @ High Frequency | 37.5312 A @ 50 kHz |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.125" (130.18mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
|
|

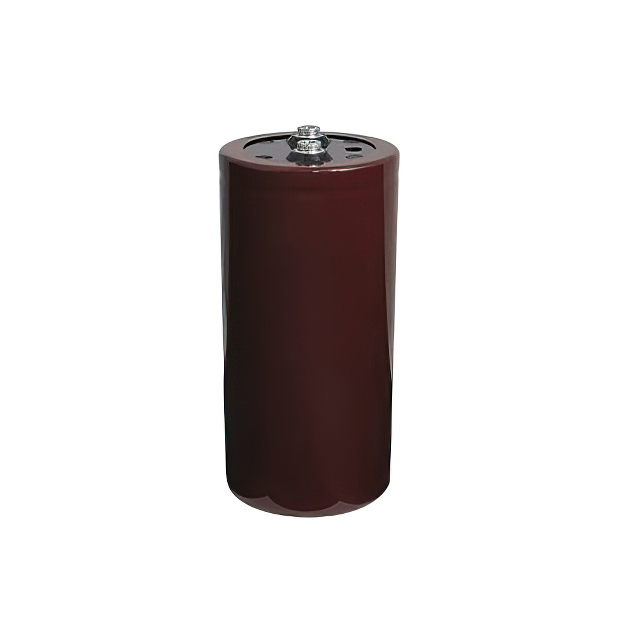

| Part Number | E32D800HLB183MC92U | E32D800HLN393MDB7U | E32D800HLN682MA79M | E32D800HLS682MA79M |
| Manufacturer | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | CAP ALUM 18MF 20% 80V SCREW CHAS | CAP ALUM 39MF 20% 80V SCREW CHAS | CAP ALUM 6800UF 20% 80V SCREW CH | CAP ALUM 6800UF 20% 80V SCREW CH |
| Series | Chemi-Con | Chemi-Con | Chemi-Con | Chemi-Con |
| Packaging | Bulk | Bulk | Bulk | Bulk |
