E3SB40E00010KE
lmages are for reference only.E3SB40E00010KE
XTAL 3225 40MHZ, 6PF/7/15/-40+10
Datasheet4-SMD, No Lead
98,787 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
40 MHz ±7ppm Crystal 6pF 20 Ohms 4-SMD, No Lead
E3SB40E00010KE
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | Hosonic Electronic Co., Ltd |
| Series | E3SB |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 40 MHz |
| Frequency Stability | ±15ppm |
| Frequency Tolerance | ±7ppm |
| Load Capacitance | 6pF |
| ESR (Equivalent Series Resistance) | 20 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 100°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.030" (0.75mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | E3SB40E00010KE | E3SB40E00010JE | E3SB40E00010JE | E3SB40E00010ME |
| Manufacturer | Hosonic Electronic Co., Ltd | Hosonic Electronic Co., Ltd | Hosonic Electronic Co., Ltd | Hosonic Electronic Co., Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

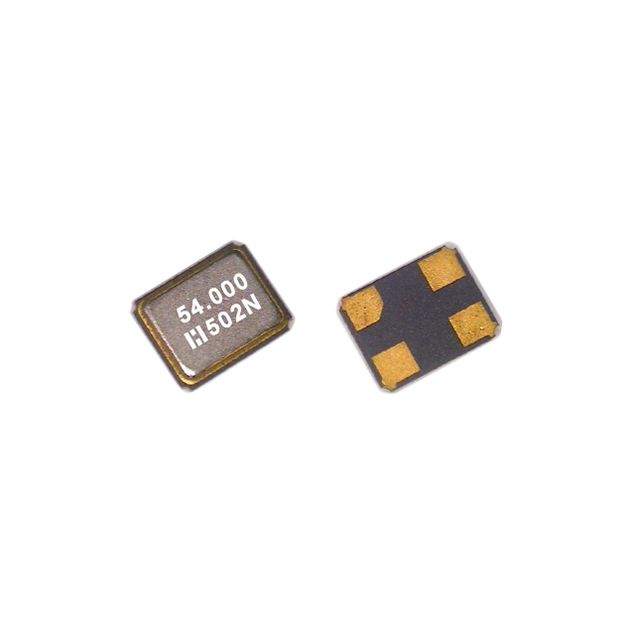

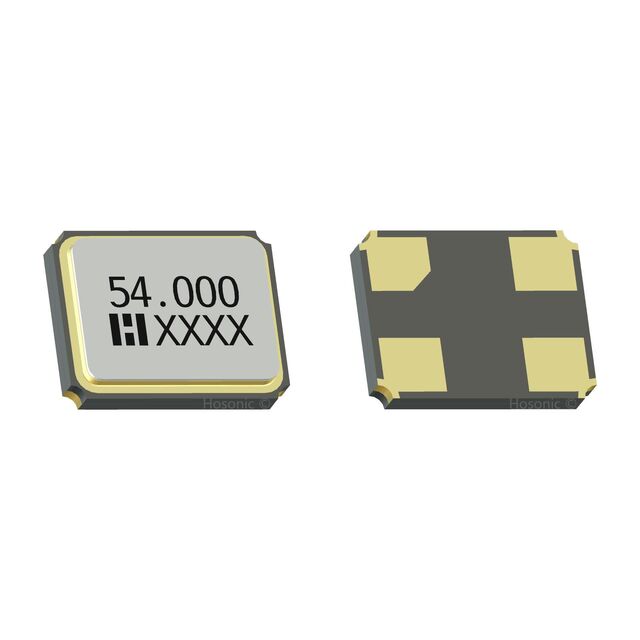

| Description | XTAL 3225 40MHZ, 6PF/7/15/-40+10 | XTAL 3225 40MHZ, 12PF | XTAL 3225 40MHZ, 12PF | XTAL 3225 40MHZ 15PPM |
| Series | Hosonic Electronic Co., Ltd | Hosonic Electronic Co., Ltd | Hosonic Electronic Co., Ltd | Hosonic Electronic Co., Ltd |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
