E4M0045075J2-TR

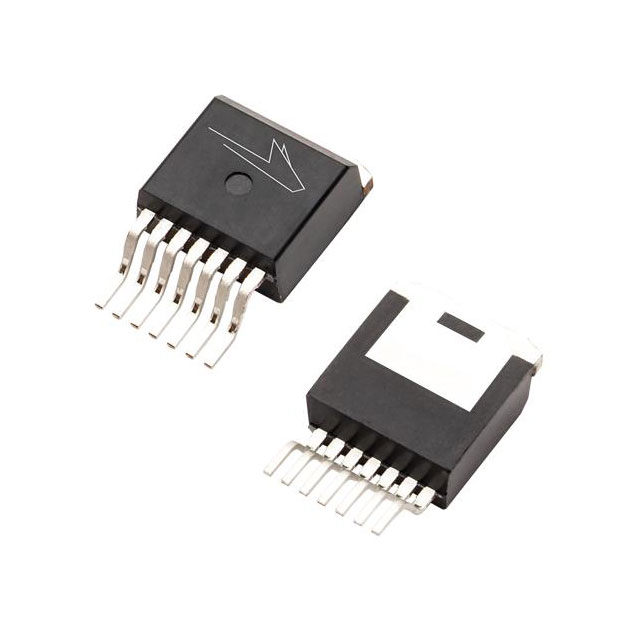

lmages are for reference only.E4M0045075J2-TR
MOSFETS 1606 PF 172W 3.8V 62 NC
DatasheetTO-263-8, D2PAK (7 Leads + Tab), TO-263CA
67,468 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 750 V 46A (Tc) 172W (Tc) Surface Mount TO-263-7
E4M0045075J2-TR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Wolfspeed, Inc. |
| Series | E |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 750 V |
| Current - Continuous Drain (Id) @ 25°C | 46A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V |
| Rds On (Max) @ Id, Vgs | 60mOhm @ 17.6A, 15V |
| Vgs(th) (Max) @ Id | 3.8V @ 4.84mA |
| Vgs (Max) | +19V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 1606 pF @ 500 V |
| FET Feature | - |
| Power Dissipation (Max) | 172W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-263-7 |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 62 nC @ 15 V |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
|
 |

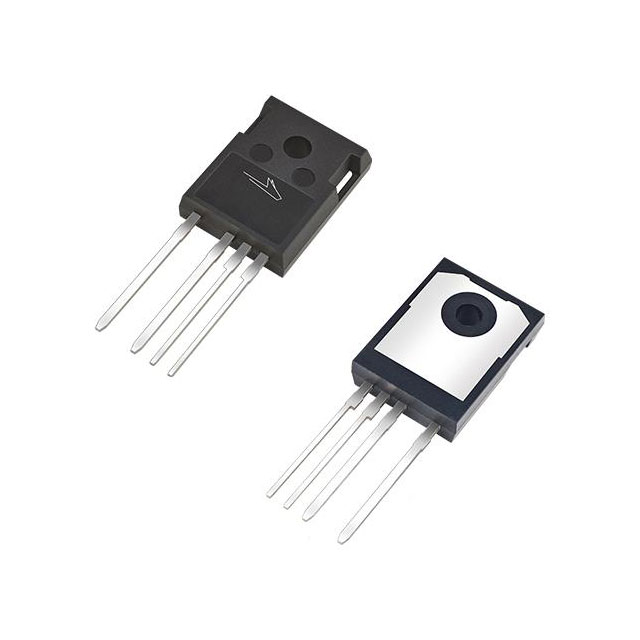

| Part Number | E4M0045075K1 | E4M0013120K | E4M0015075J2-TR | E4M0015075K1 |
| Manufacturer | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. | Wolfspeed, Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | MOSFETS AUTOMOTIVE 139W 3.8V NC | 13M, 1200V, SIC FET TO-247, AUTO | MOSFETS 5128 PF 554W 3.8V 180 NC | MOSFETS AUTOMOTIVE 372W 3.8V NC |
| Series | E | E | E | E |
| Packaging | Bulk | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
