EAST1608RGA1
lmages are for reference only.EAST1608RGA1
LED GREEN/RED CLEAR 2SMD
Datasheet0603 (1608 Metric)
72,724 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green, Red 572nm Green, 624nm Red LED Indication - Discrete 2V Green, 2V Red 0603 (1608 Metric)
EAST1608RGA1
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Everlight Electronics Co Ltd |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 40mcd Green, 79mcd Red |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.60mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 2V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 572nm Green, 624nm Red |
| Wavelength - Peak | 575nm Green, 632nm Red |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.50mm |
| Base Product Number | EAST1608 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|

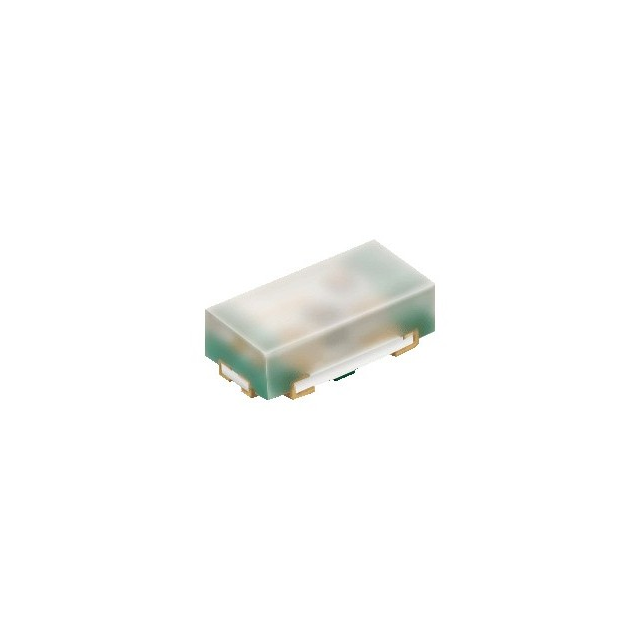

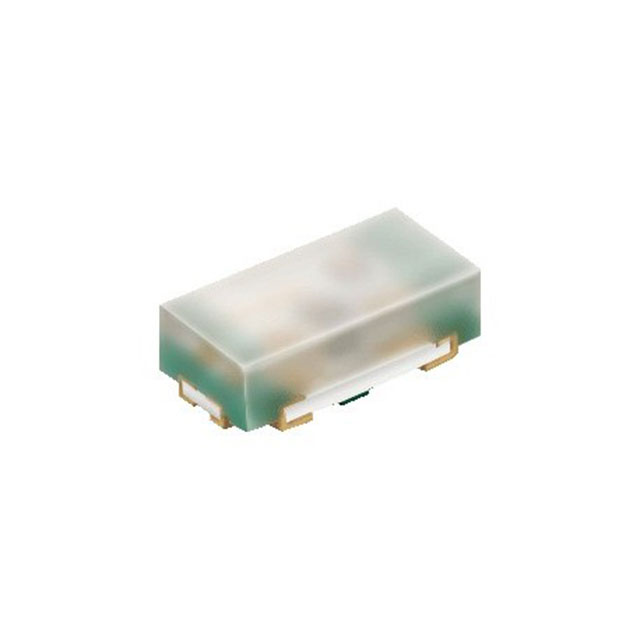

| Part Number | EAST1608RGA0 | EAST1608RGA2 | EAST1608RGA3 | EAST1608RGA4 |
| Manufacturer | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LED GREEN/RED DIFFUSED 2SMD | LED GREEN/RED CLEAR 2SMD | LED GREEN/RED DIFFUSED 2SMD | LED GREEN/RED CLEAR 0603 SMD |
| Series | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd | Everlight Electronics Co Ltd |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
