Product CatalogPart Number
EBAC-02-C
Manufacturer
Adam TechDescription
EURO BLOCK 2P
Datasheet
DatasheetPackage
-
In Stock
98,657 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EBAC-02-C
EBAC-02-C
lmages are for reference only.Payment Methods
Delivery Services
2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Quick Inquiry
EBAC-02-C
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Wire to Board |
| Manufacturer | Adam Tech |
| Series | EB |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Number of Levels | 1 |
| Positions Per Level | 2 |
| Pitch | 0.197" (5.00mm) |
| Mating Orientation | Horizontal with Board |
| Current | 10 A |
| Voltage | 300 V |
| Wire Gauge | 12-22 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screw - Rising Cage Clamp |
| Features | Interlocking (Side) |
| Color | Green |
| Operating Temperature | -40°C ~ 115°C |
| Housing Material | Thermoplastic |
| Contact Material - Plating | Brass - Tin Plated |
| Clamp Material - Plating | Brass - Nickel Plated |
| Screw Material - Plating | Steel - Zinc Plated |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) |
| Screw Thread | M2.5 |
| Base Product Number | EBAC |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

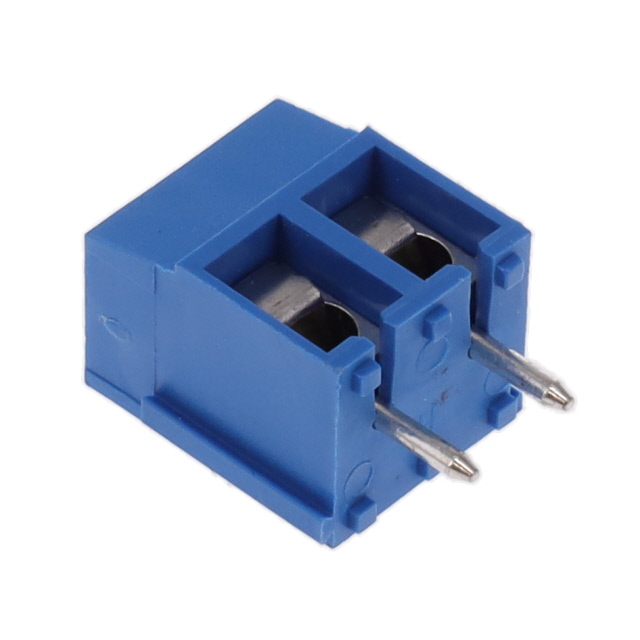

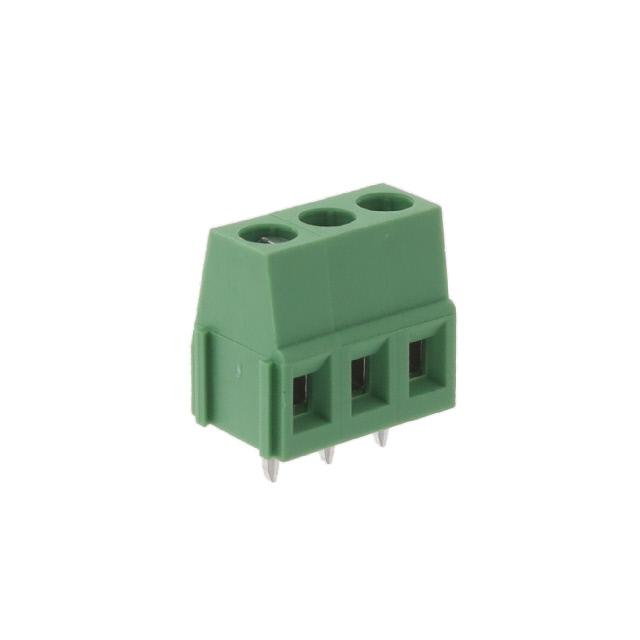

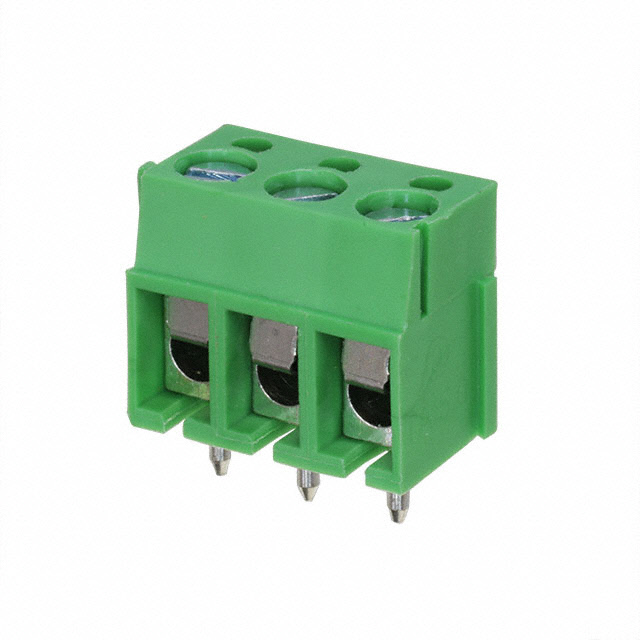

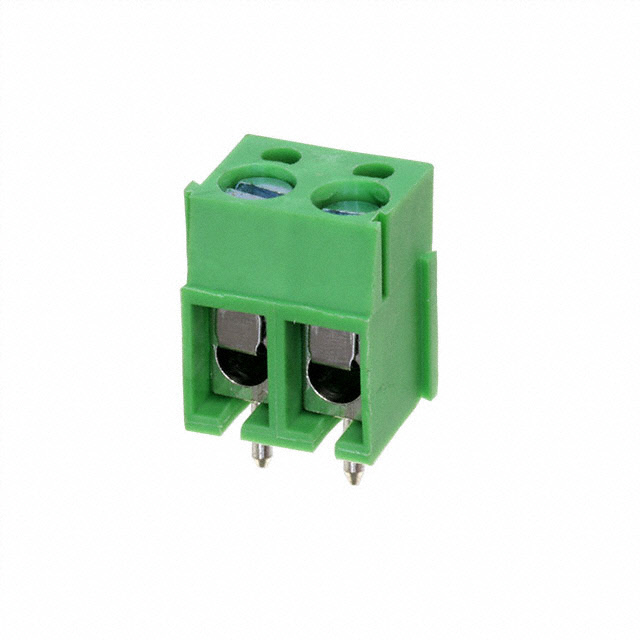

| Part Number | EBAC-03-C | EBA-02-C | EBA-02-D-BU-01 | EBA-03-C |
| Manufacturer | Adam Tech | Adam Tech | Adam Tech | Adam Tech |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | EURO BLOCK 3P | EURO BLOCK 2P | EUROBLOCK 2POS | EURO BLOCK 3P |
| Series | EB | EB | EB | EB |
| Packaging | Box | Box | Box | Bulk |
