Product CatalogPart Number
EBVW020A0B41Z
Manufacturer
OmniOn Power™Description
DC DC CONVERTER 12V 240W
Datasheet
DatasheetPackage
8-DIP Module, 1/8 Brick
In Stock
71,130 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EBVW020A0B41Z
EBVW020A0B41Z
lmages are for reference only.Payment Methods
Delivery Services
Intermediate Bus Converter DC DC Converter 1 Output 12V 20A 36V - 75V Input
Quick Inquiry
EBVW020A0B41Z
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | OmniOn Power™ |
| Series | Barracuda™ EBVW020A0B (240W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Intermediate Bus Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 20A |
| Power (Watts) | 240 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95.2% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 1/8 Brick |
| Size / Dimension | 2.30" L x 0.90" W x 0.44" H (58.4mm x 22.9mm x 11.1mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | EBVW020 |
| Voltage - Isolation | 2.25 kV |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |
| Part Number | EBVW020A0B41-HZ | EBVW020A0B41-HZ | EBVW020A0B41-PHZ | EBVW020A0B1Z |
| Manufacturer | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 12V 240W | DC DC CONVERTER 12V 240W | DC DC CONVERTER 12V 240W | DC DC CONVERTER 12V 240W |
| Series | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ | OmniOn Power™ |
| Packaging | Bulk | Bulk | Bulk | Bulk |
Customers Also Interested in
Recommended Products
EBVW012A7B1Z
OmniOn Power™
EBVW012A7B9641Z
OmniOn Power™

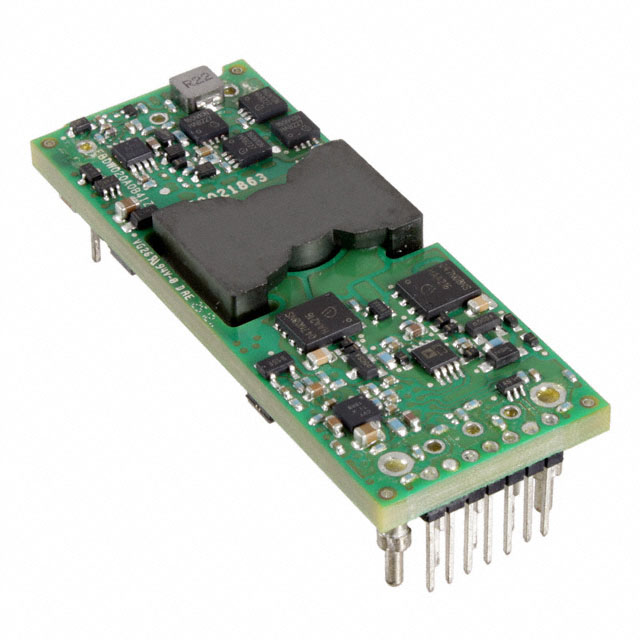

EBVW017A0S14R0641Z
