Product CatalogPart Number
EC2-05S052P3
Manufacturer
Adam TechDescription
DC-DC CONVERTER, ISOLATED MODULE
Datasheet
DatasheetPackage
7-SIP Module, 4 Leads
In Stock
57,482 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EC2-05S052P3
EC2-05S052P3
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 5.5V Input
Quick Inquiry
EC2-05S052P3
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Adam Tech |
| Series | EC2-2W (2W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 400mA |
| Power (Watts) | 2 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 84% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

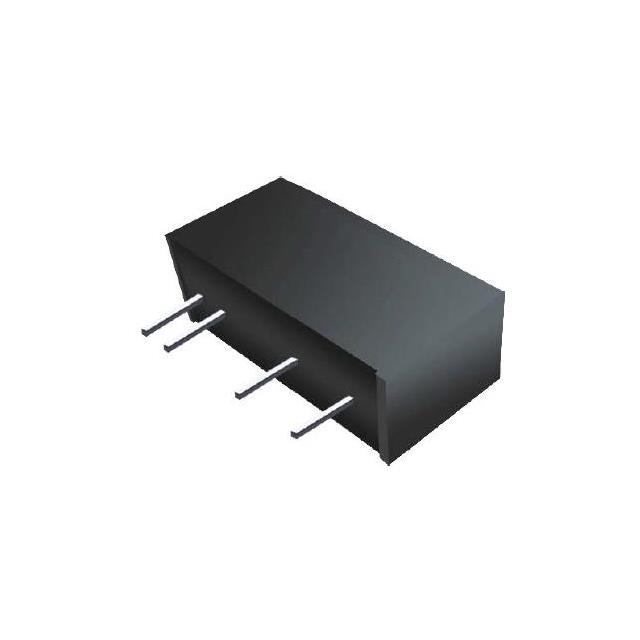

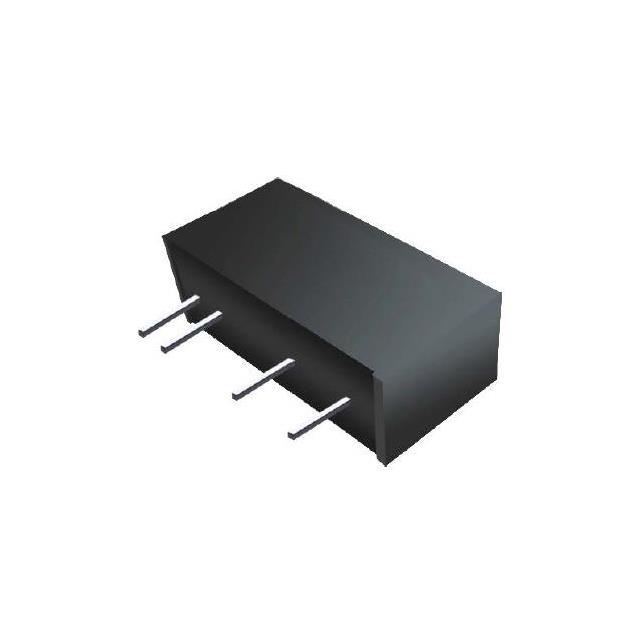

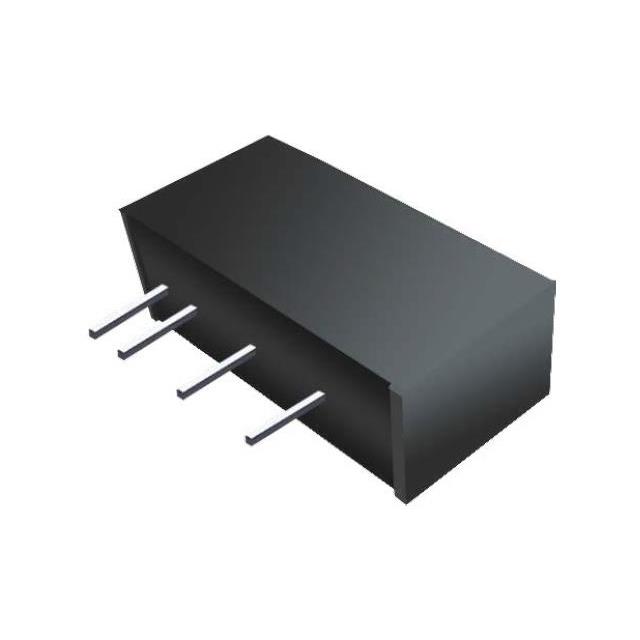

| Part Number | EC2-05S05P3 | EC2-05S05RP3 | EC2-05D052P3 | EC2-05D12P3 |
| Manufacturer | Adam Tech | Adam Tech | Adam Tech | Adam Tech |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC-DC CONVERTER, ISOLATED MODULE | DC-DC CONVERTER, ISOLATED MODULE | DC-DC CONVERTER, ISOLATED MODULE | DC-DC CONVERTER, ISOLATED MODULE |
| Series | Adam Tech | Adam Tech | Adam Tech | Adam Tech |
| Packaging | Tube | Tube | Tube | Tube |
