EC2SA-05S33N

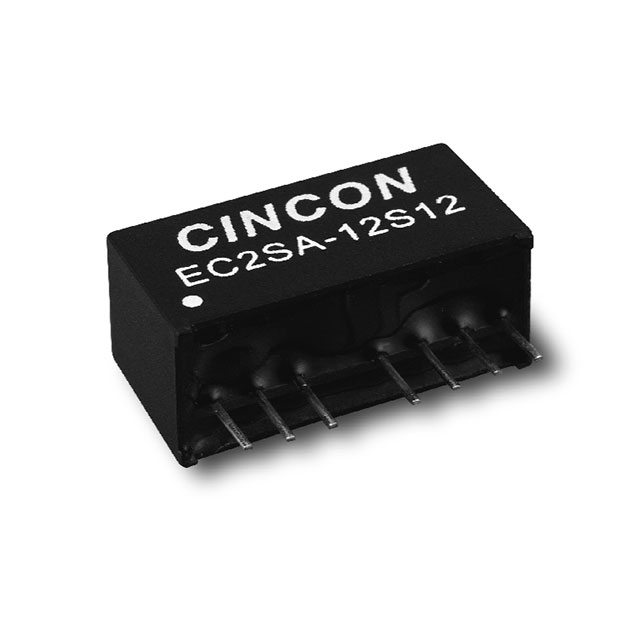

lmages are for reference only.EC2SA-05S33N
DC DC CONVERTER 3.3V 1.7W
Datasheet8-SIP Module, 7 Leads
42,885 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 500mA 4.5V - 9V Input
EC2SA-05S33N
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Cincon Electronics Co. LTD |
| Series | EC2SA (2W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 9V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | 1.7 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 73% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-SIP Module, 7 Leads |
| Size / Dimension | 0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 60950-1 |
| Base Product Number | EC2SA |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | EC2SA-05S05N | EC2SA-05S12N | EC2SA-05S15N | EC2SA-05D05 |
| Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 5V 2W | DC DC CONVERTER 12V 2W | DC DC CONVERTER 15V 2W | LOW POWER DC-DC I/P:4.5-9.0VDC O |
| Series | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| Packaging | Tube | Tube | Tube | Tube |
