Product CatalogPart Number
EC4-12D05P
Manufacturer
Adam TechDescription
DC-DC CONVERTER, ISOLATED MODULE
Datasheet
DatasheetPackage
7-SIP Module, 5 Leads
In Stock
93,189 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EC4-12D05P
EC4-12D05P

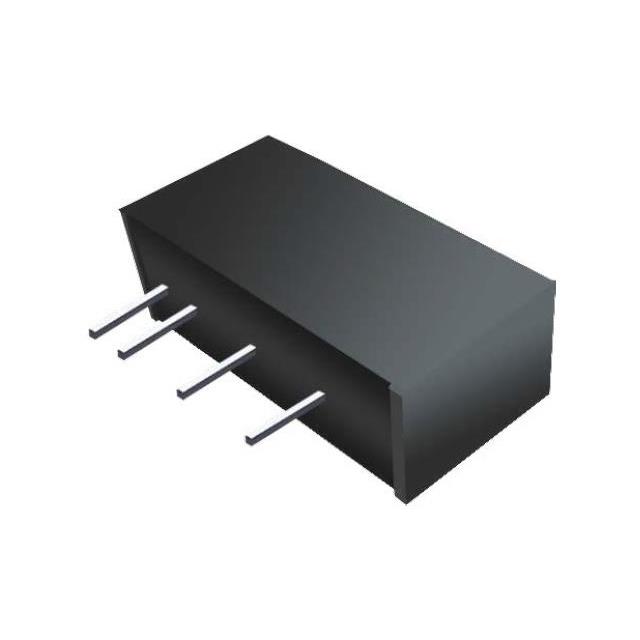

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 9.6V - 14.4V Input
Quick Inquiry
EC4-12D05P
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Adam Tech |
| Series | EC4 (1W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9.6V |
| Voltage - Input (Max) | 14.4V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | -5V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 100mA, 100mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
