EC4BU-05S33AT

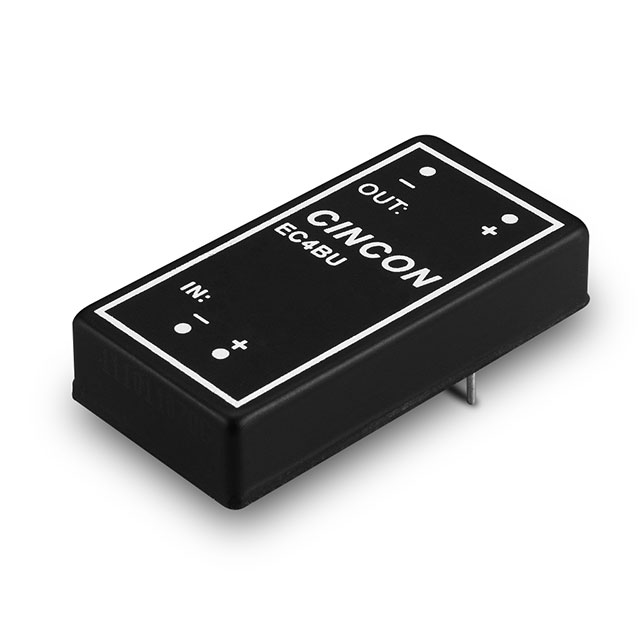

lmages are for reference only.EC4BU-05S33AT
LOW POWER DC-DC I/P:4.7-9VDC O/P
Datasheet6-DIP Module
73,937 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 2.5A 4.7V - 9V Input
EC4BU-05S33AT
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Cincon Electronics Co. LTD |
| Series | EC4BU (10W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.7V |
| Voltage - Input (Max) | 9V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 8.25 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 87% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | EC4BU-05S33 | EC4BU-05S33A | EC4BU-05S33T | EC4BU-05D05 |
| Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 3.3V 8.3W | DC DC CONVERTER 3.3V 8.3W | DC DC CONVERTER 3.3V 8.3W | DC DC CONVERTER +/-5V 10W |
| Series | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| Packaging | Tube | Tube | Tube | Tube |
