EC5A-24S15

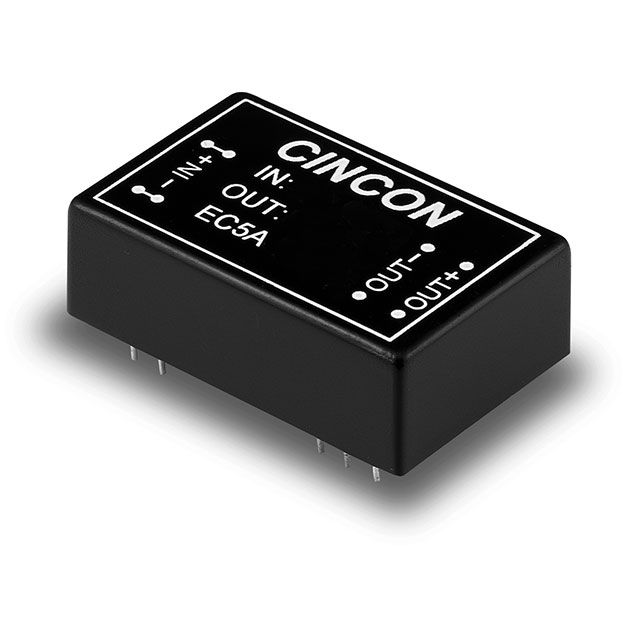

lmages are for reference only.EC5A-24S15
DC DC CONVERTER 15V 24W
Datasheet24-DIP Module, 14 Leads
85,290 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Non-Isolated PoL Module DC DC Converter 1 Output 15V 1.6A 19V - 32V Input
EC5A-24S15
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Cincon Electronics Co. LTD |
| Series | EC5A (24W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 19V |
| Voltage - Input (Max) | 32V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.6A |
| Power (Watts) | 24 W |
| Applications | ITE (Commercial) |
| Features | OCP |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 94% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 14 Leads |
| Size / Dimension | 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | - |
| Base Product Number | EC5A-24 |
| Voltage - Isolation | - |
| Product Attribute |  |
|
 |
|
| Part Number | EC5A-24S12 | EC5A-24S12 | EC5A-05S33 | EC5A-05S33 |
| Manufacturer | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 12V 19W | DC DC CONVERTER 12V 19W | DC DC CONVERTER 3.3V 6.6W | DC DC CONVERTER 3.3V 6.6W |
| Series | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD | Cincon Electronics Co. LTD |
| Packaging | Tube | Tube | Tube | Tube |
