ECA-2AHG3R3

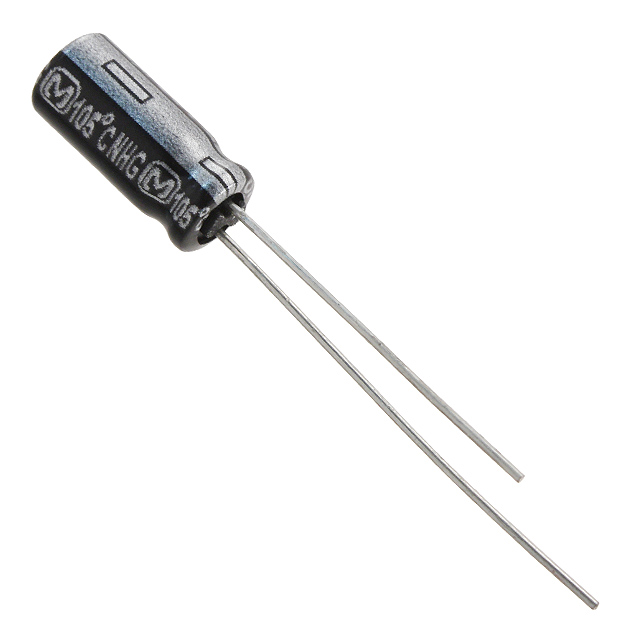

lmages are for reference only.ECA-2AHG3R3
CAP ALUM 3.3UF 20% 100V RADIAL
DatasheetRadial, Can
69,178 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
3.3 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
ECA-2AHG3R3
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | NHG-A |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 540 mA @ 120 Hz |
| Ripple Current @ High Frequency | 62 mA @ 100 kHz |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | ECA-2AH |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ECA-2AHG3R3B | ECA-2AHG3R3I | ECA-2AHG010 | ECA-2AHG100 |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | CAP ALUM 3.3UF 20% 100V RADIAL | CAP ALUM 3.3UF 20% 100V RADIAL | CAP ALUM 1UF 20% 100V RADIAL TH | CAP ALUM 10UF 20% 100V RADIAL TH |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Bulk |
