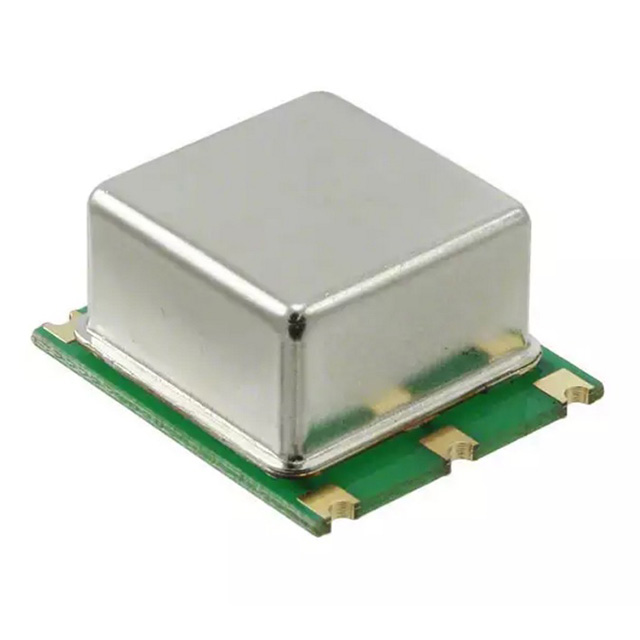

lmages are for reference only.Payment Methods
Delivery Services
38.88 MHz OCXO CMOS Oscillator 3.3V 6-SMD, No Lead, 5 Leads
ECOC-2522-38.880-3HC
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | ECS Inc. |
| Series | ECOC-2522 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | OCXO |
| Frequency | 38.88 MHz |
| Function | - |
| Output | CMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±30ppb |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 75°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | - |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead, 5 Leads |
| Size / Dimension | 1.000" L x 0.870" W (25.40mm x 22.10mm) |
| Height - Seated (Max) | 0.488" (12.40mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
|
| Part Number | ECOC-2522-38.880-3HC | ECOC-2522-38.880-3HS | ECOC-2522-38.880-3FC | ECOC-2522-38.880-3FC |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC OCXO 38.8800MHZ CMOS | XTAL OSC OCXO 38.8800MHZ SNWV | XTAL OSC OCXO 38.8800MHZ CMOS | XTAL OSC OCXO 38.8800MHZ CMOS |
| Series | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Packaging | Tray | Tray | Tray | Tray |
