ECS-2200B-073
lmages are for reference only.Payment Methods
Delivery Services

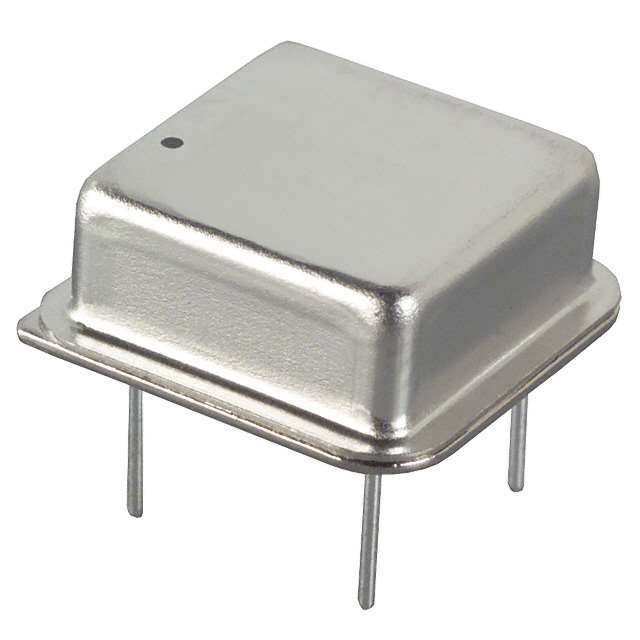

7.3728 MHz XO (Standard) HCMOS, TTL Oscillator 5V Enable/Disable 8-DIP, 4 Leads (Half Size, Metal Can)
ECS-2200B-073
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | ECS Inc. |
| Series | ECS-2200 |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 7.3728 MHz |
| Function | Enable/Disable |
| Output | HCMOS, TTL |
| Voltage - Supply | 5V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | 0°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 25mA |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP, 4 Leads (Half Size, Metal Can) |
| Size / Dimension | 0.520" L x 0.520" W (13.20mm x 13.20mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
 |
| Part Number | ECS-2200B-040 | ECS-2200B-049 | ECS-2200B-061 | ECS-2200B-080 |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | XTAL OSC XO 4.0000MHZ HCMOS TTL | XTAL OSC XO 4.9152MHZ HCMOS TTL | XTAL OSC XO 6.1440MHZ HCMOS TTL | XTAL OSC XO 8.0000MHZ HCMOS TTL |
| Series | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
