Product CatalogPart Number
ECS-2520MV-240-BL-TR
Manufacturer
ECS Inc.Description
XTAL OSC XO 24.0000MHZ CMOS SMD
Datasheet
DatasheetPackage
4-SMD, No Lead
In Stock
38,647 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ECS-2520MV-240-BL-TR
ECS-2520MV-240-BL-TR
lmages are for reference only.Payment Methods
Delivery Services
24 MHz XO (Standard) HCMOS Oscillator 1.6V ~ 3.6V Enable/Disable 4-SMD, No Lead
Quick Inquiry
ECS-2520MV-240-BL-TR
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | ECS Inc. |
| Series | ECS-2520MV MultiVolt™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 24 MHz |
| Function | Enable/Disable |
| Output | HCMOS |
| Voltage - Supply | 1.6V ~ 3.6V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -10°C ~ 70°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 7mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.035" (0.90mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
|
| Part Number | ECS-2520MV-240-BN-TR | ECS-2520MV-240-DN-TR | ECS-2520MV-040-BN-TR | ECS-2520MV-080-BM-TR |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 24.0000MHZ CMOS SMD | XTAL OSC XO 24.0000MHZ CMOS SMD | XTAL OSC XO 4.0000MHZ CMOS SMD | XTAL OSC XO 8.0000MHZ CMOS SMD |
| Series | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
ECS-2012MV-327KE-TR
ECS Inc.
ECS-2016MV-080-CN-TR3
ECS Inc.
ECS-2016MV-080-DN-TR
ECS Inc.
ECS-2016MV-100-BN-TR3
ECS Inc.
ECS-2016MV-120-BN-TR
ECS Inc.
ECS-2016MV-120-BN-TR3
ECS Inc.

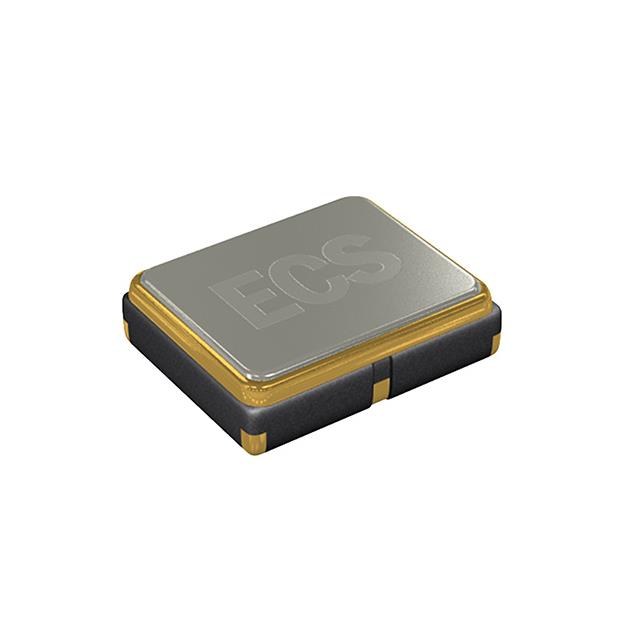

ECS-2016MV-160-BN-TR3
