ECS-2520S30-120-EN-TR

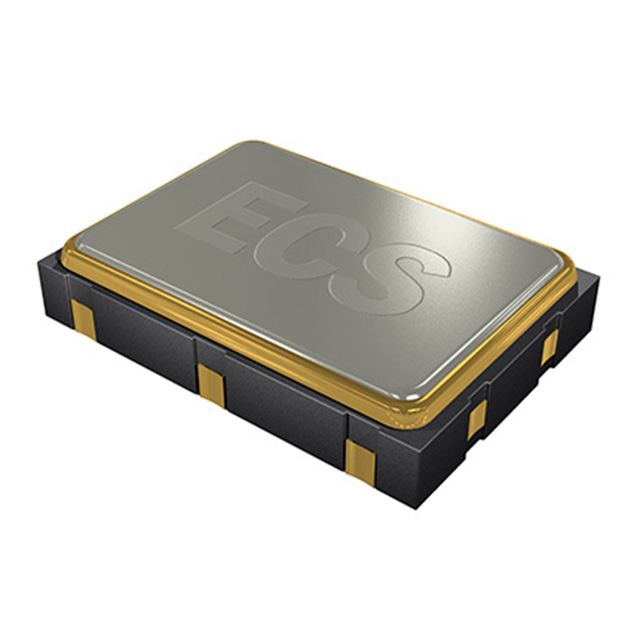

lmages are for reference only.Payment Methods
Delivery Services
12 MHz XO (Standard) HCMOS Oscillator 3V Enable/Disable 4-SMD, No Lead
ECS-2520S30-120-EN-TR
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | ECS Inc. |
| Series | ECS-2520S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 12 MHz |
| Function | Enable/Disable |
| Output | HCMOS |
| Voltage - Supply | 3V |
| Frequency Stability | ±15ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 7mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
|
|
| Part Number | ECS-2520S30-120-FN-TR | ECS-2520S30-050-EN-TR | ECS-2520S30-050-FN-TR | ECS-2520S30-100-EN-TR |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 12.0000MHZ HCMOS SMD | XTAL OSC XO 5.0000MHZ HCMOS SMD | XTAL OSC XO 5.0000MHZ HCMOS SMD | XTAL OSC XO 10.0000MHZ HCMOS SMD |
| Series | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
