ECS-286.3-12-33B2Q-JES-TR3
lmages are for reference only.Payment Methods
Delivery Services
28.63636 MHz ±20ppm Crystal 12pF 35 Ohms 4-SMD, No Lead
ECS-286.3-12-33B2Q-JES-TR3
| Category | Crystals, Oscillators, Resonators - Crystals - |
| Manufacturer | ECS Inc. |
| Series | ECX-33B2Q |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | MHz Crystal |
| Frequency | 28.63636 MHz |
| Frequency Stability | ±50ppm |
| Frequency Tolerance | ±20ppm |
| Load Capacitance | 12pF |
| ESR (Equivalent Series Resistance) | 35 Ohms |
| Operating Mode | Fundamental |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.031" (0.80mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

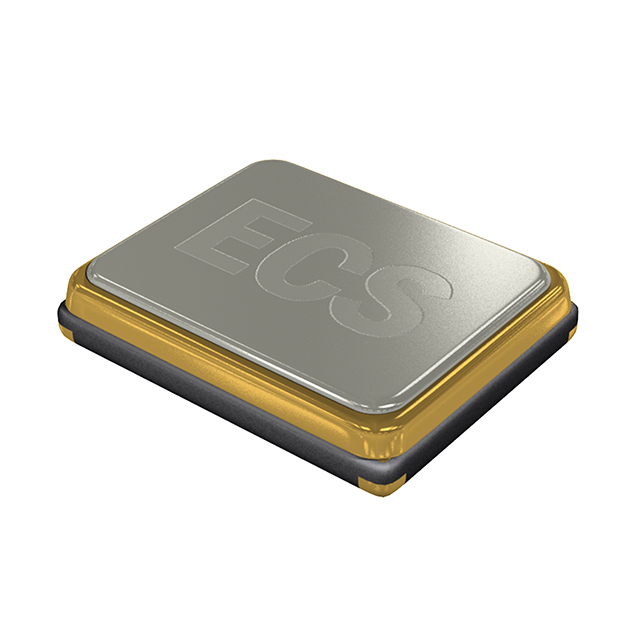

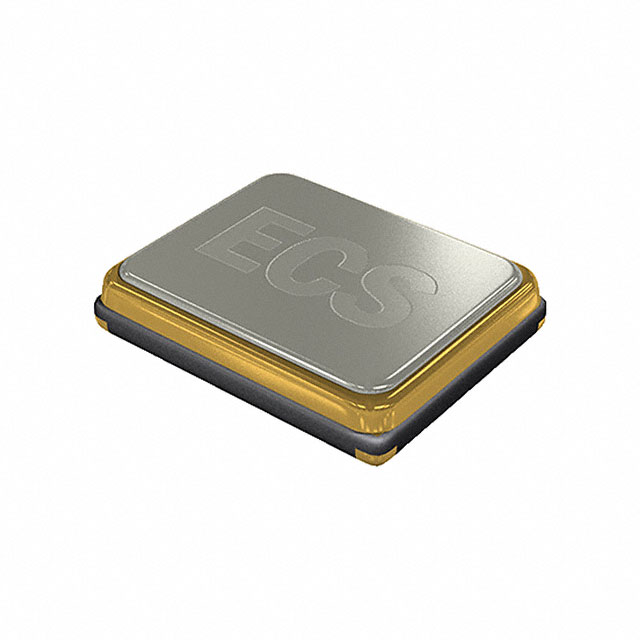

| Part Number | ECS-286.3-12-33B2Q-JES-TR3 | ECS-286.3-10-33-AGL-TR | ECS-286.3-10-33-AGL-TR | ECS-286.3-10-37-JTN-TR |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CRYSTAL 28.63636 MHZ 12PF SMD | CRYSTAL 28.63636MHZ 10PF SMD | CRYSTAL 28.63636MHZ 10PF SMD | CRYSTAL 28.63636MHZ 10PF SMD |
| Series | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
