ECS-3953M-500-BN-T-TR
lmages are for reference only.Payment Methods
Delivery Services
50 MHz XO (Standard) HCMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
ECS-3953M-500-BN-T-TR
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | ECS Inc. |
| Series | ECS-3953M |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 50 MHz |
| Function | Enable/Disable |
| Output | HCMOS |
| Voltage - Supply | 3.3V |
| Frequency Stability | ±50ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 25mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.067" (1.70mm) |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |

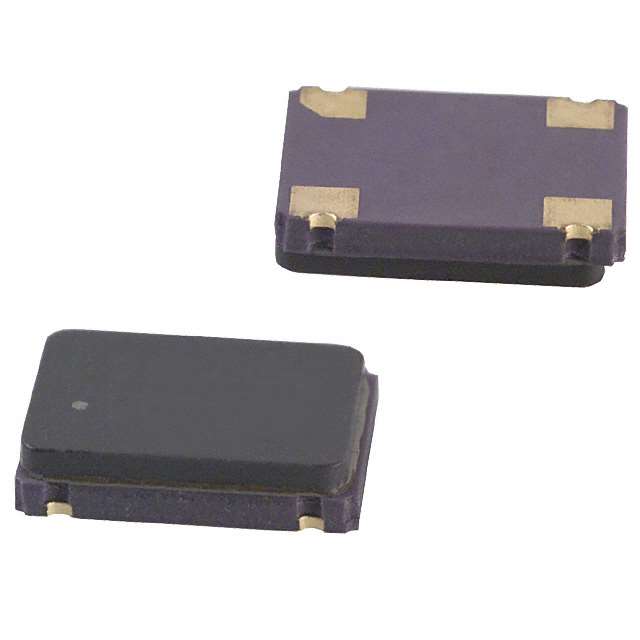

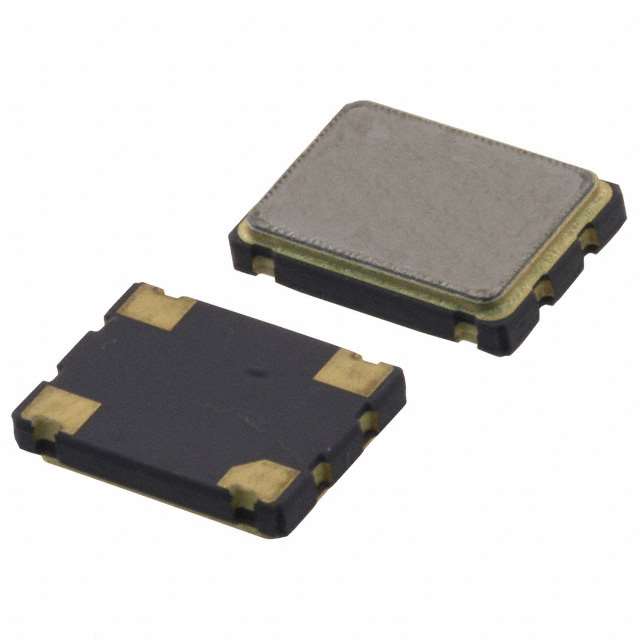

| Part Number | ECS-3953M-500-B-TR | ECS-3953M-500-BN-TR | ECS-3951C-018-TR | ECS-3951C-036-TR |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 50.0000MHZ HCMOS SMD | XTAL OSC XO 50.0000MHZ HCMOS SMD | XTAL OSC XO 1.8432MHZ HCMOS SMD | XTAL OSC XO 3.6864MHZ HCMOS SMD |
| Series | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
