Product CatalogPart Number
ECS-8FM-110.5-TR
Manufacturer
ECS Inc.Description
XTAL OSC XO 11.0592MHZ CMOS TTL
Datasheet
DatasheetPackage
4-SOJ, 5.08mm pitch
In Stock
13,711 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
ECS-8FM-110.5-TR
ECS-8FM-110.5-TR
lmages are for reference only.Payment Methods
Delivery Services
11.0592 MHz XO (Standard) CMOS, TTL Oscillator 5V Enable/Disable 4-SOJ, 5.08mm pitch
Quick Inquiry
ECS-8FM-110.5-TR
Specifications
| Category | Crystals, Oscillators, Resonators - Oscillators - |
| Manufacturer | ECS Inc. |
| Series | ECS-8F |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Base Resonator | Crystal |
| Type | XO (Standard) |
| Frequency | 11.0592 MHz |
| Function | Enable/Disable |
| Output | CMOS, TTL |
| Voltage - Supply | 5V |
| Frequency Stability | ±200ppm |
| Absolute Pull Range (APR) | - |
| Operating Temperature | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - |
| Current - Supply (Max) | 23mA |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-SOJ, 5.08mm pitch |
| Size / Dimension | 0.551" L x 0.341" W (14.00mm x 8.65mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | ECS-8FM-110.5-TR | ECS-8FA3X-020.48-TR | ECS-8FA3X-036-TR | ECS-8FA3X-081.92-TR |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | XTAL OSC XO 11.0592MHZ CMOS TTL | XTAL OSC XO 2.0480MHZ CMOS SMD | XTAL OSC XO 3.6864MHZ CMOS SMD | XTAL OSC XO 8.1920MHZ CMOS SMD |
| Series | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
Customers Also Interested in
Recommended Products
ECS-8FA3X-020.48-TR
ECS Inc.
ECS-8FA3X-036-TR
ECS Inc.

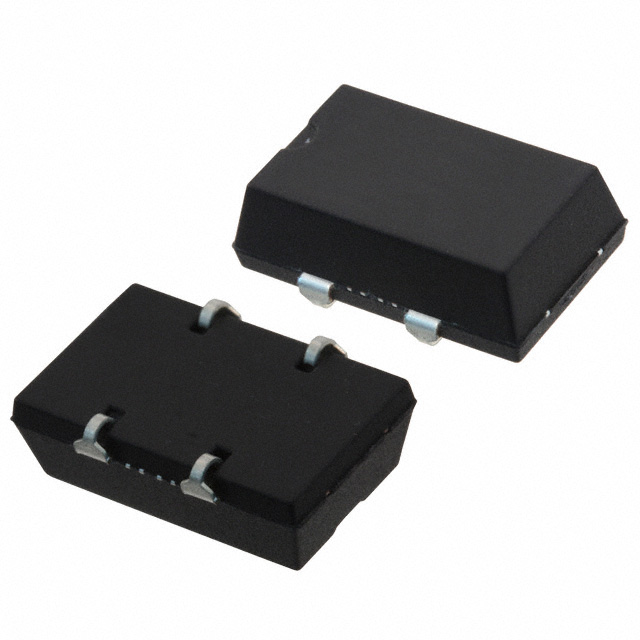

ECS-8FA3X-081.92-TR
