ECW-F2W564JAQ

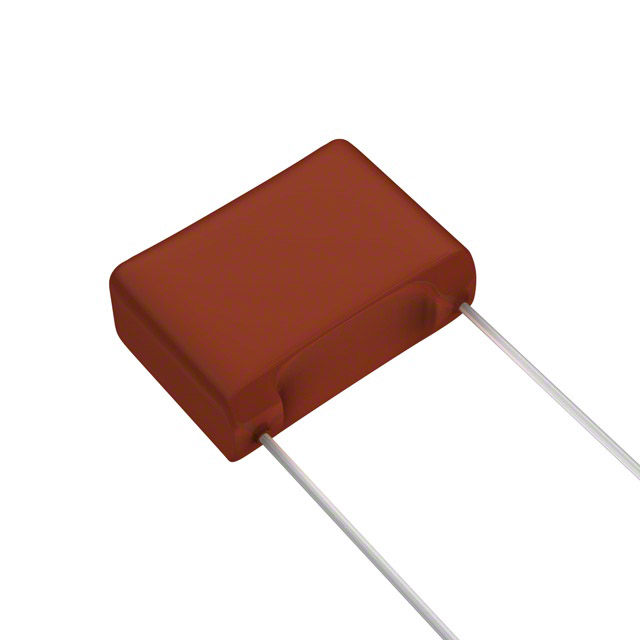

lmages are for reference only.ECW-F2W564JAQ
CAP FILM 0.56UF 5% 450VDC RADIAL
DatasheetRadial
14,529 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
0.56 µF Film Capacitor 450V Polypropylene (PP), Metallized Radial
ECW-F2W564JAQ
| Category | Capacitors - Film Capacitors - |
| Manufacturer | Panasonic Electronic Components |
| Series | ECW-F(A) |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 0.56 µF |
| Tolerance | ±5% |
| Voltage Rating - AC | - |
| Voltage Rating - DC | 450V |
| Dielectric Material | Polypropylene (PP), Metallized |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 0.713" L x 0.276" W (18.10mm x 7.00mm) |
| Height - Seated (Max) | 0.728" (18.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.591" (15.00mm) |
| Applications | General Purpose |
| Ratings | - |
| Features | - |
| ESR (Equivalent Series Resistance) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ECW-F2W564JA | ECW-F2W564JAB | ECW-F2W564KA | ECW-F2W564KAB |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP FILM 0.56UF 5% 450VDC RADIAL | CAP FILM 0.56UF 5% 450VDC RADIAL | CAP FILM 0.56UF 10% 450VDC RADIA | CAP FILM 0.56UF 10% 450VDC RADIA |
| Series | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
