EDS02SGRSTU04Q

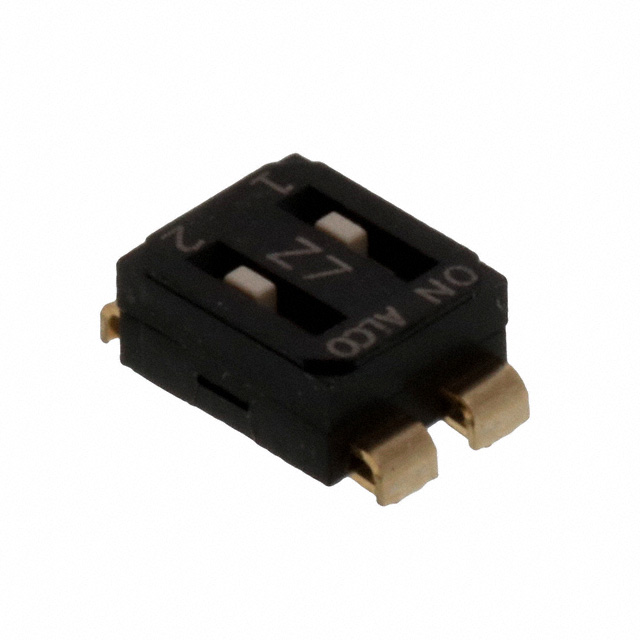

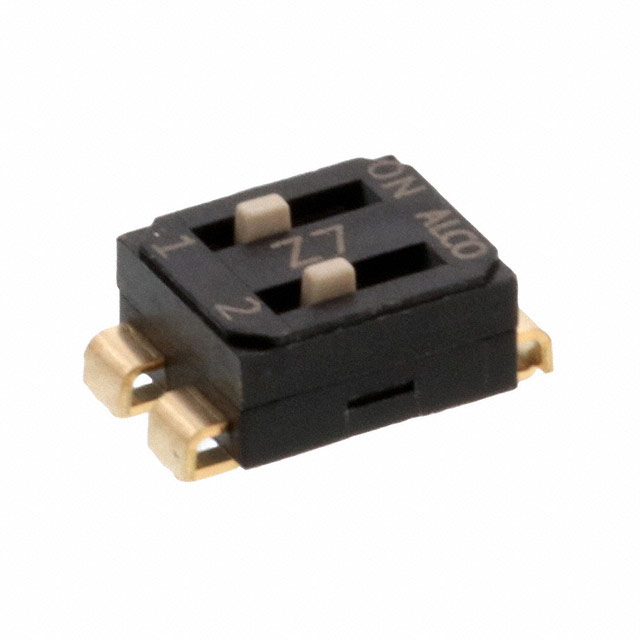

lmages are for reference only.EDS02SGRSTU04Q
SWITCH SLIDE DIP SPST 0.025A 24V
Datasheet-
91,523 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch SPST 2 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
EDS02SGRSTU04Q
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | EDS |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST |
| Number of Positions | 2 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.134" (3.40mm) |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Pitch | 0.100" (2.54mm), Full |
| Washable | Yes |
| Features | - |
| Operating Temperature | -20°C ~ 85°C |
| Body Material | Polyamide (PA), Nylon |
| Length | 0.196" (4.98mm) |
| Mechanical Life | 2,000 Cycles |
| Electrical Life | 2,000 Cycles |
| Base Product Number | EDS02 |
| Product Attribute |  |
 |
 |
 |
| Part Number | EDS02SGRNTR04Q | EDS02SGRNTU04Q | EDS02SGRSTR04Q | EDS01SGNNTR04Q |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V | SWITCH SLIDE DIP SPST 0.025A 24V |
| Series | EDS | EDS | EDS | EDS |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
