EDSP02SGLNNTU04
lmages are for reference only.EDSP02SGLNNTU04
SWITCH PIANO DIP SPST 0.025A 24V
Datasheet-
27,348 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Dip Switch SPST 2 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC
EDSP02SGLNNTU04
| Category | Switches - DIP Switches - |
| Manufacturer | TE Connectivity ALCOSWITCH Switches |
| Series | EDSP |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Circuit | SPST |
| Number of Positions | 2 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 24VDC |
| Actuator Type | Piano |
| Actuator Level | Raised |
| Contact Material | Copper Alloy |
| Contact Finish | Gold |
| Height Above Board | 0.197" (5.00mm) |
| Mounting Type | Surface Mount, Right Angle |
| Termination Style | Gull Wing |
| Pitch | 0.100" (2.54mm), Full |
| Washable | No |
| Features | - |
| Operating Temperature | -20°C ~ 85°C |
| Body Material | Polyamide (PA), Nylon |
| Length | 0.196" (4.98mm) |
| Mechanical Life | 2,000 Cycles |
| Electrical Life | 2,000 Cycles |
| Base Product Number | EDSP02 |
| Product Attribute |  |
 |
 |
 |

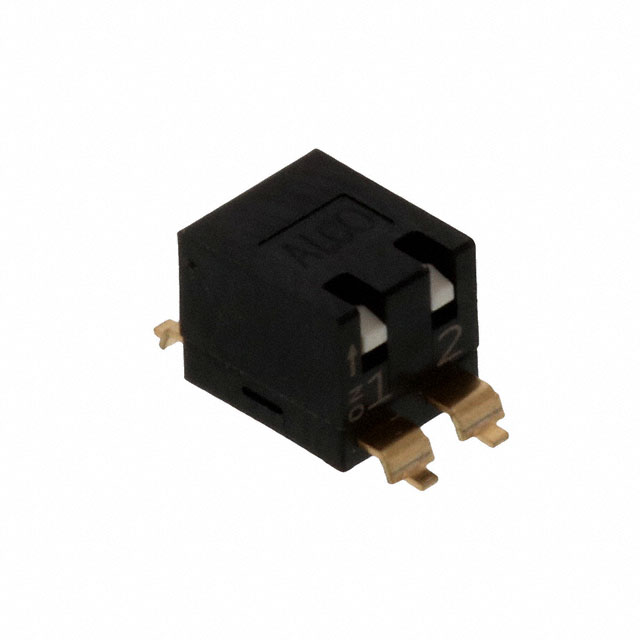

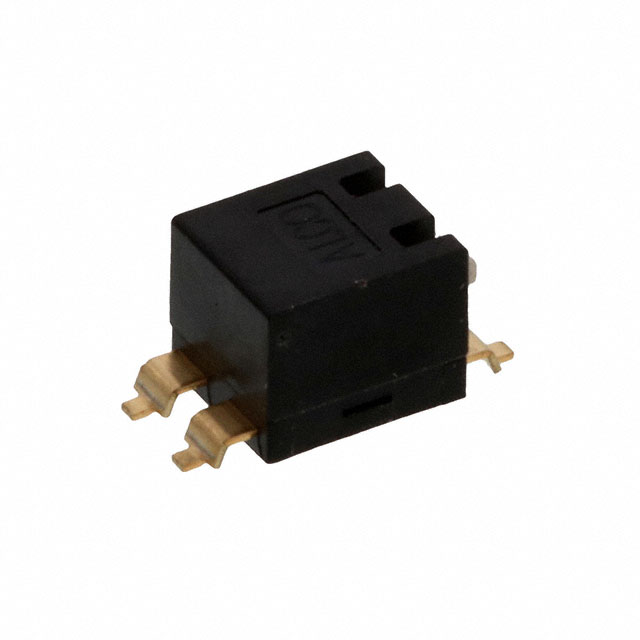

| Part Number | EDSP02SGLFNTR04 | EDSP02SGLFNTU04 | EDSP02SGLNNTR04 | EDSP02SGRFNTR04 |
| Manufacturer | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches | TE Connectivity ALCOSWITCH Switches |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SWITCH PIANO DIP SPST 0.025A 24V | SWITCH PIANO DIP SPST 0.025A 24V | SWITCH PIANO DIP SPST 0.025A 24V | SWITCH PIANO DIP SPST 0.025A 24V |
| Series | EDSP | EDSP | EDSP | EDSP |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
