EDZ500/2DS
Manufacturer
On Shore Technology Inc.Description
TERM BLK 2P SIDE ENT 5.08MM PCB
Datasheet
DatasheetPackage
-
In Stock
45,856 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
EDZ500/2DS
EDZ500/2DS
lmages are for reference only.Payment Methods
Delivery Services
2 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
Quick Inquiry
EDZ500/2DS
Specifications
| Category | Connectors, Interconnects - Terminal Blocks - Wire to Board |
| Manufacturer | On Shore Technology Inc. |
| Series | EDZ500/DS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Number of Levels | 1 |
| Positions Per Level | 2 |
| Pitch | 0.200" (5.08mm) |
| Mating Orientation | Horizontal with Board |
| Current | 15 A |
| Voltage | 300 V |
| Wire Gauge | 14-22 AWG |
| Mounting Type | Through Hole |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
| Features | - |
| Color | Blue |
| Operating Temperature | -30°C ~ 105°C |
| Housing Material | Polyamide (PA), Nylon |
| Contact Material - Plating | Brass |
| Clamp Material - Plating | Steel, Stainless |
| Screw Material - Plating | - |
| Torque - Screw | 0.4 Nm (3.5 Lb-In) |
| Screw Thread | M2.6 |
| Base Product Number | EDZ500 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

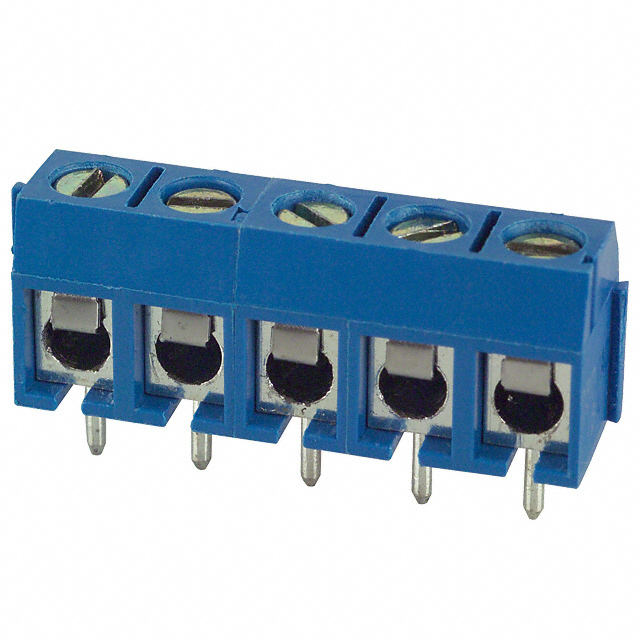

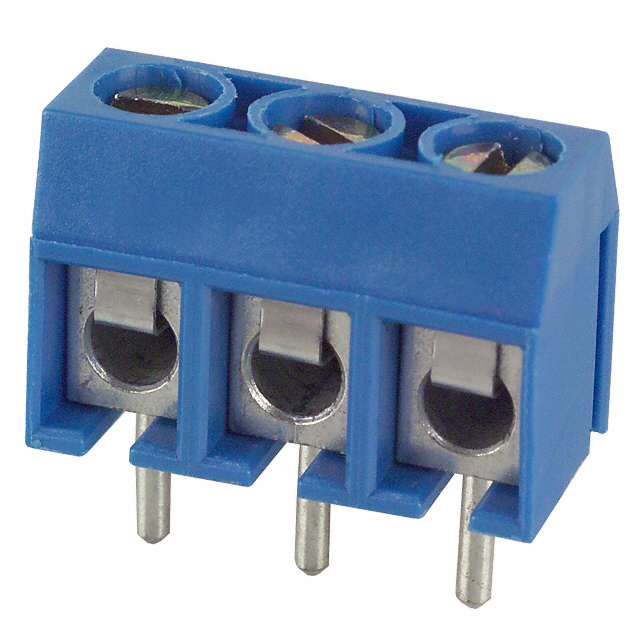

| Part Number | EDZ500/3DS | EDZ500/5DS | A-TB762-VJ05H | SCM179100L |
